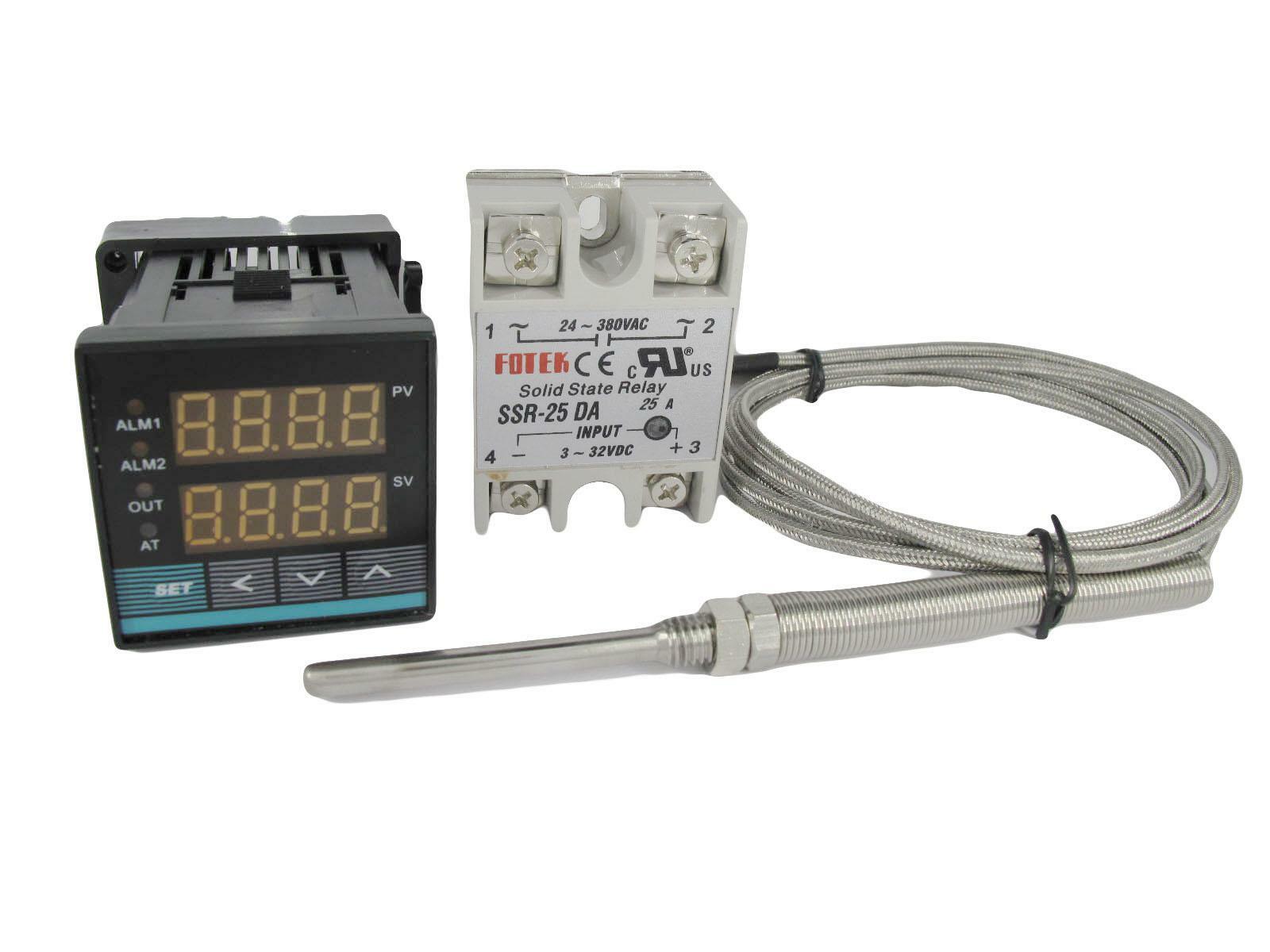

Name: Digital PID Temperature Controller w SSR HighTemp Sensors in ℃ / ℉ (2 Alarm)
Brand: Procon Store
SKU: KC-2001
Price: 29.00 CAD
Availability: InStock

Digital PID Temperature Controller w SSR HighTemp Sensors in ℃ / ℉ (2 Alarm)

$29.00

$29.00 $0.00

Digital PID Temperature Controller w SSR HighTemp Sensors in ℃ / ℉ (2 Alarm)

$29.00

$29.00 $0.00

Digital PID Temperature Controller w SSR HighTemp Sensors in ℃ / ℉ (2 Alarm)

Fast Shipping to US, Canada, Europe in 1-3 weeks

Specifications

Input Sensors	K,J,R,S,B,E N,T,PT100,Cu50…
Display	Celcius / Fahrenheit (switchable)
Output 1	SSR (9VDC, 20mA)
Alarm Output 1	Relay 5A (250VAC)
Alarm Output 2	Relay 5A (250VAC)
Control Method	PID control
Sampling Time	0.5 second
Power Supply	90 ~ 260 VAC 50/60Hz
Power Consumption	4W
Ambient Temperature	-10 ~ 50 degree Celcius /14 ~ 122 degree Fahrenheit
Ambient Humidity	35 - 85 %

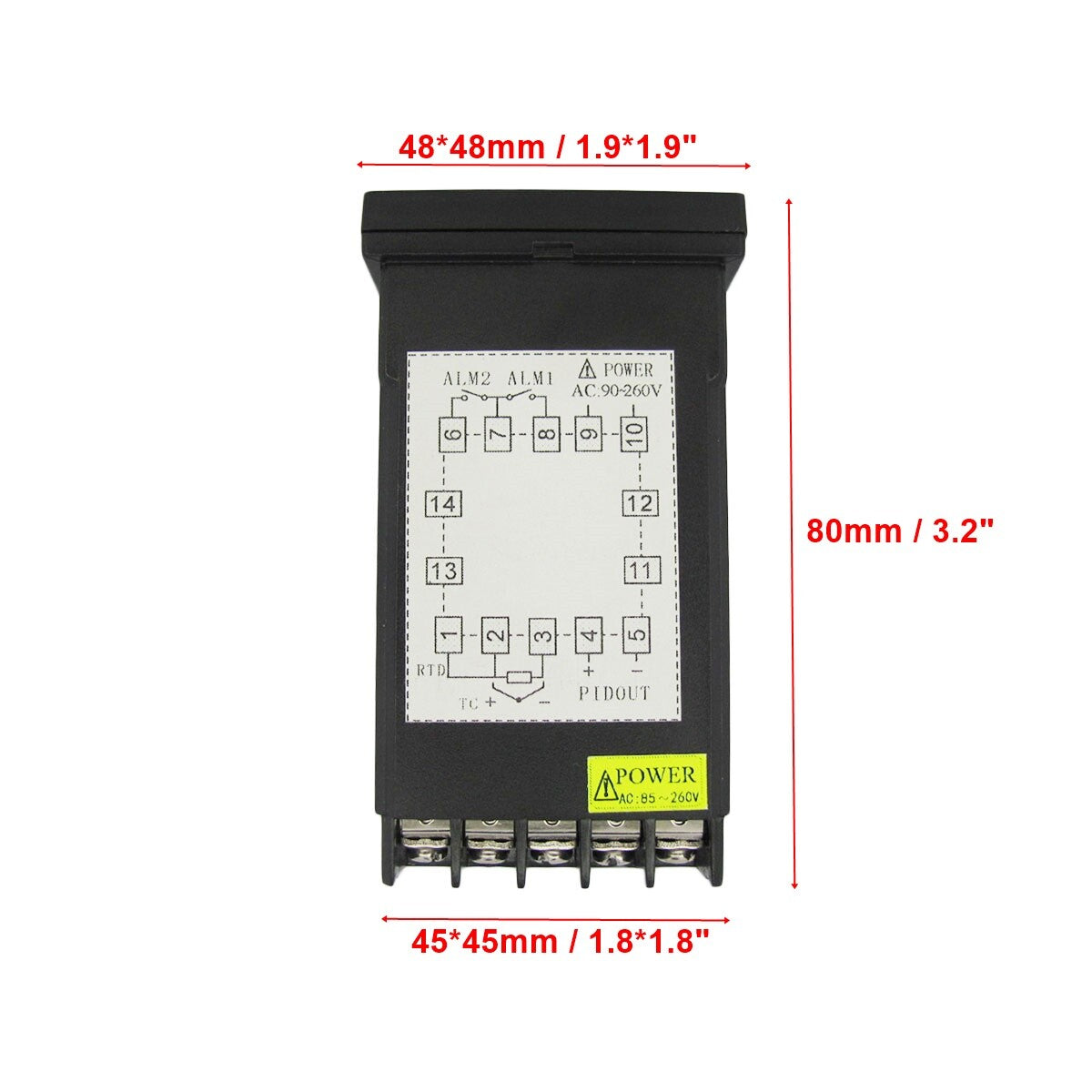

Dimensions	48(H) x 48(L) x 80(D)mm/1.9”(H) x 1.9”(L) x 3.15”(D)
Panel Cut	45 x 45 mm / 1.8” x 1.8”

Programmable Inputs (Display Range)
K	-200 ~ 1250 C	Wire 3/25	0 ~ 2300 C
E	-200 ~ 900 C	Wire 5/26	0 ~ 2300 C
S	0 ~ 1700 C	PT100	-200 ~ 600 C
B	-400~ 1800 C	Cu100	-50 ~ 150 C
J	0 ~ 750 C	Cu50	-50 ~ 150 C
T	-250 ~ 350 C	BA1	-200 ~ 650 C
R	0 ~ 1700 C	BA2	-200 ~ 500 C
N	-40 ~ 1200 C	G53	-50 ~ 150 C

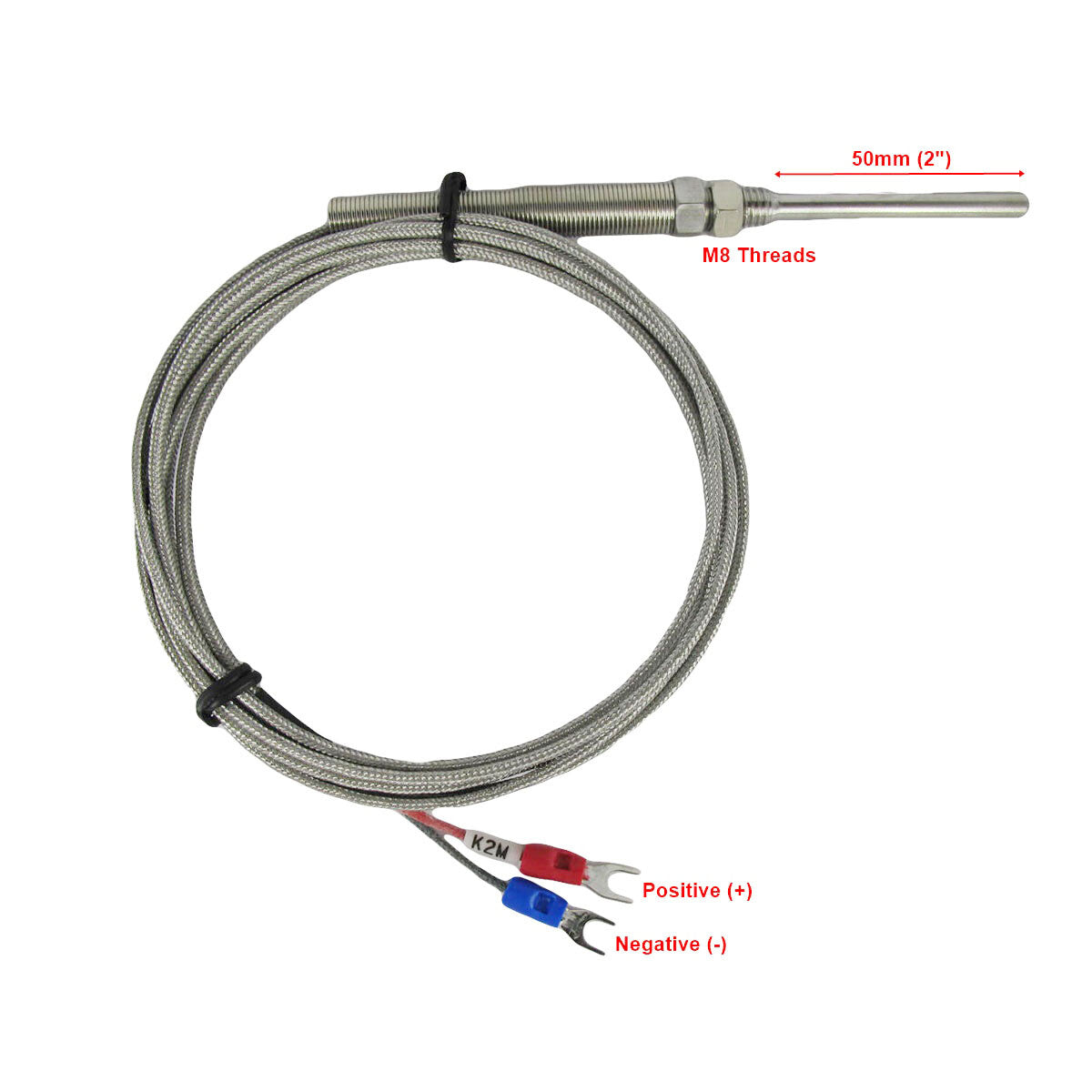

Temperature Sensor Description
Type	K Type Thermocouple
Measuring Temperature	-100 ~ 400 C ( -150 ~ 750F)
Probe Length	50mm (2”)
Probe Diameter	5mm (0.2”)
Threads Size	M8 threads with nut
Probe Material	Stainless Steel 304
Cable Length	2m (6.6’)
Cable Shealth	Fiberglass overbraided with Stainless Steel
Connector	Spade Connectors

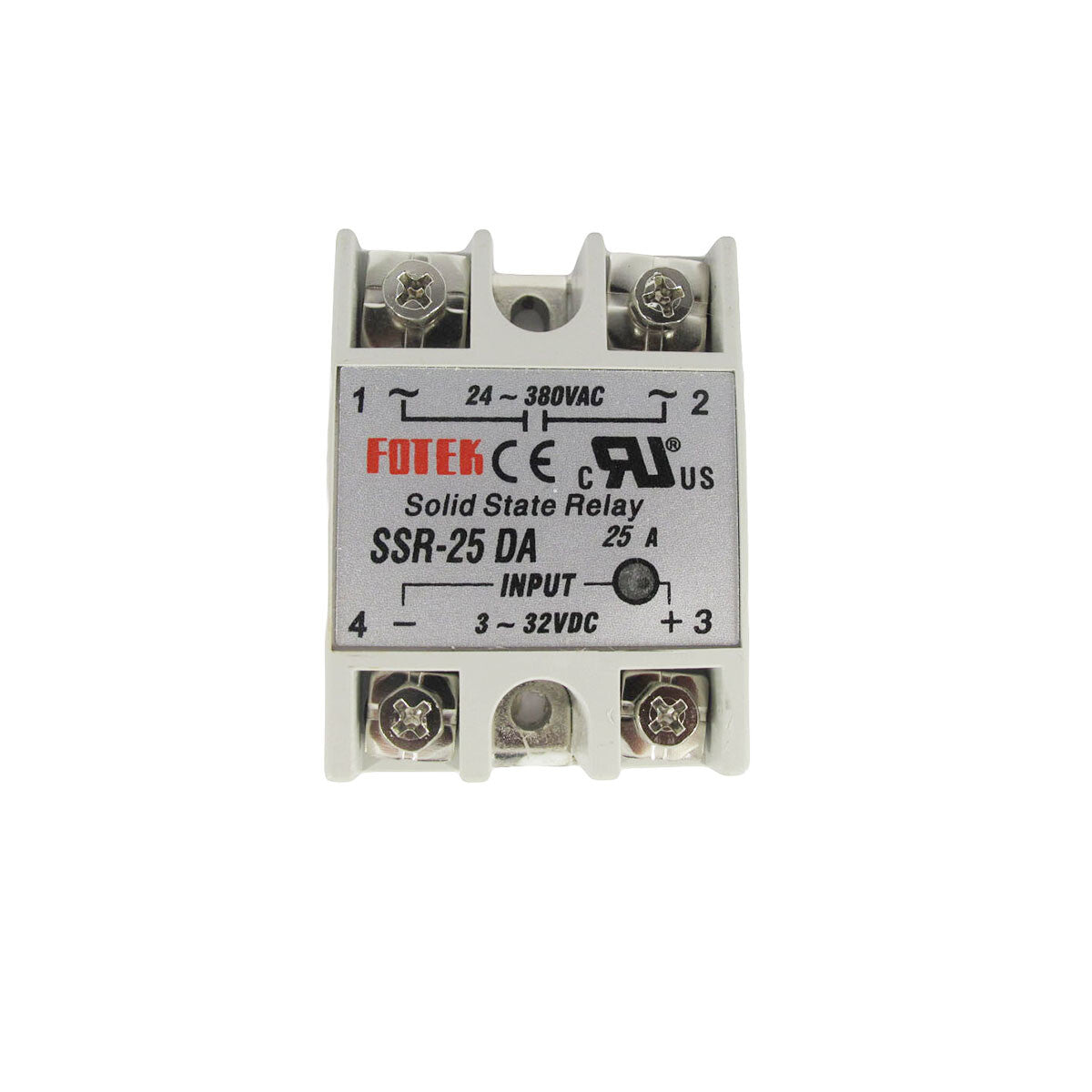

Solid State Relay (SSR) Specifications
Model	Fotek SSR-25DA
Input	3~32 VDC
Output	24~380 VAC
Current Ratings	25A

Features

100% Brand New Item

High temperatures range of temperature controller and sensors

This item has been tested in good working condition before auction.
