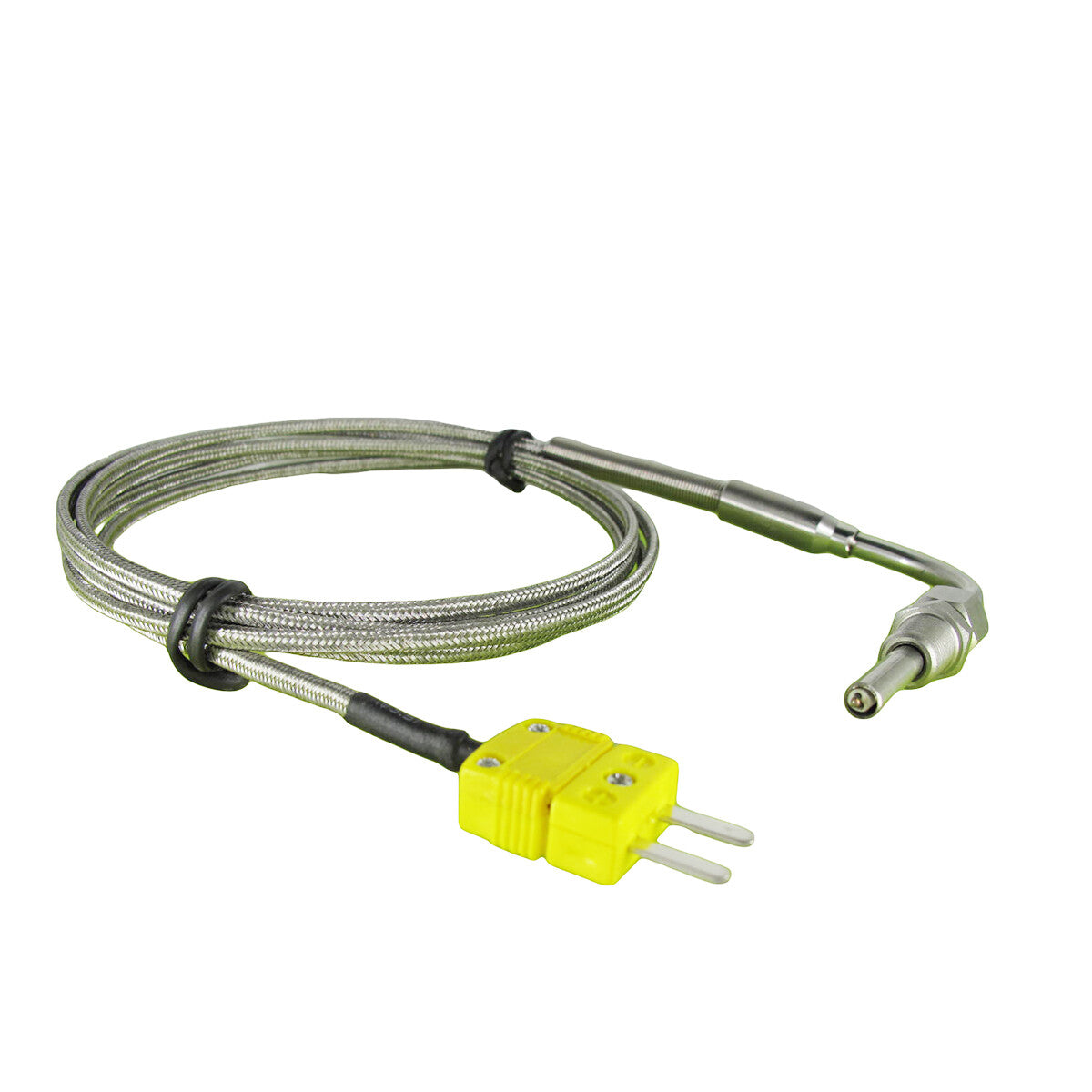

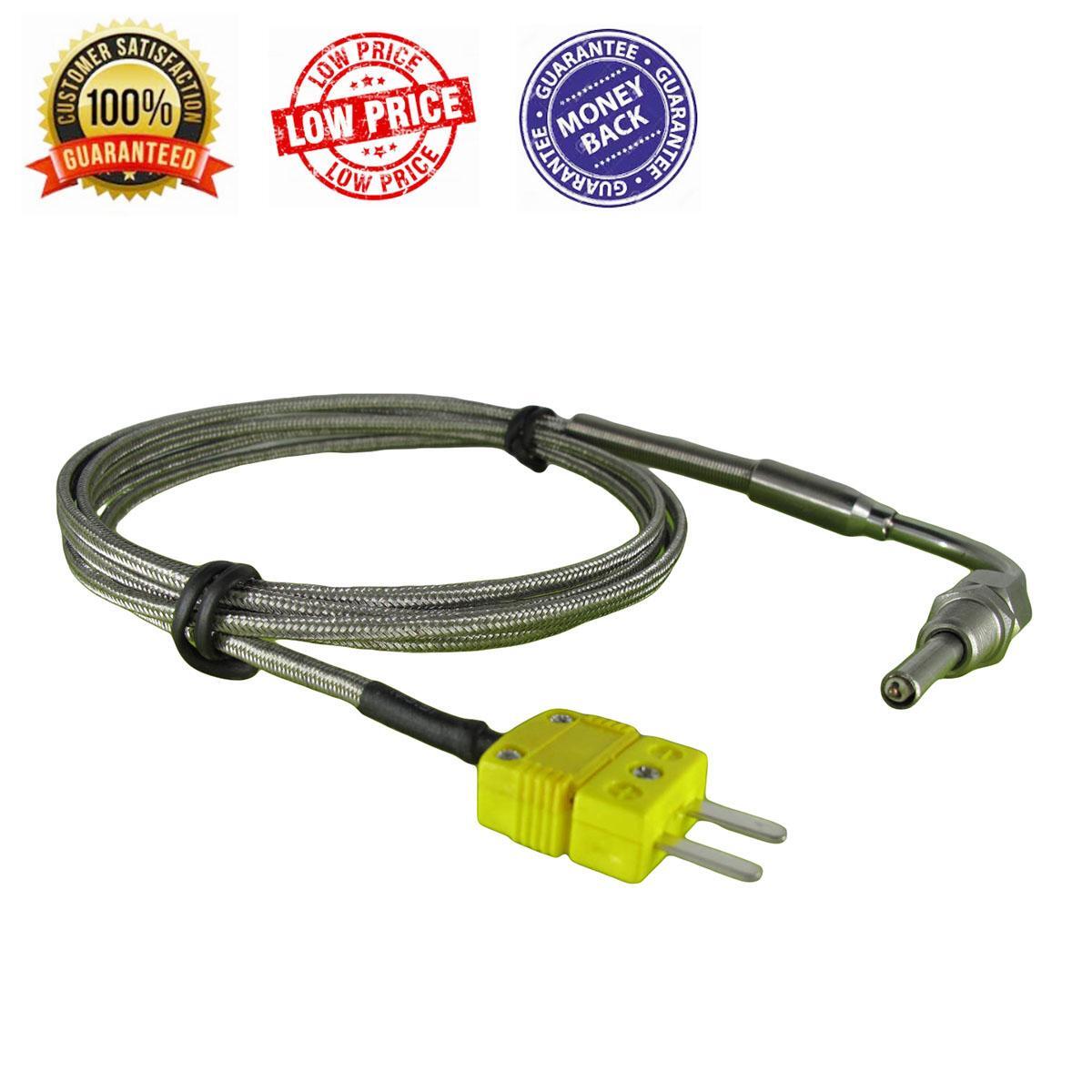

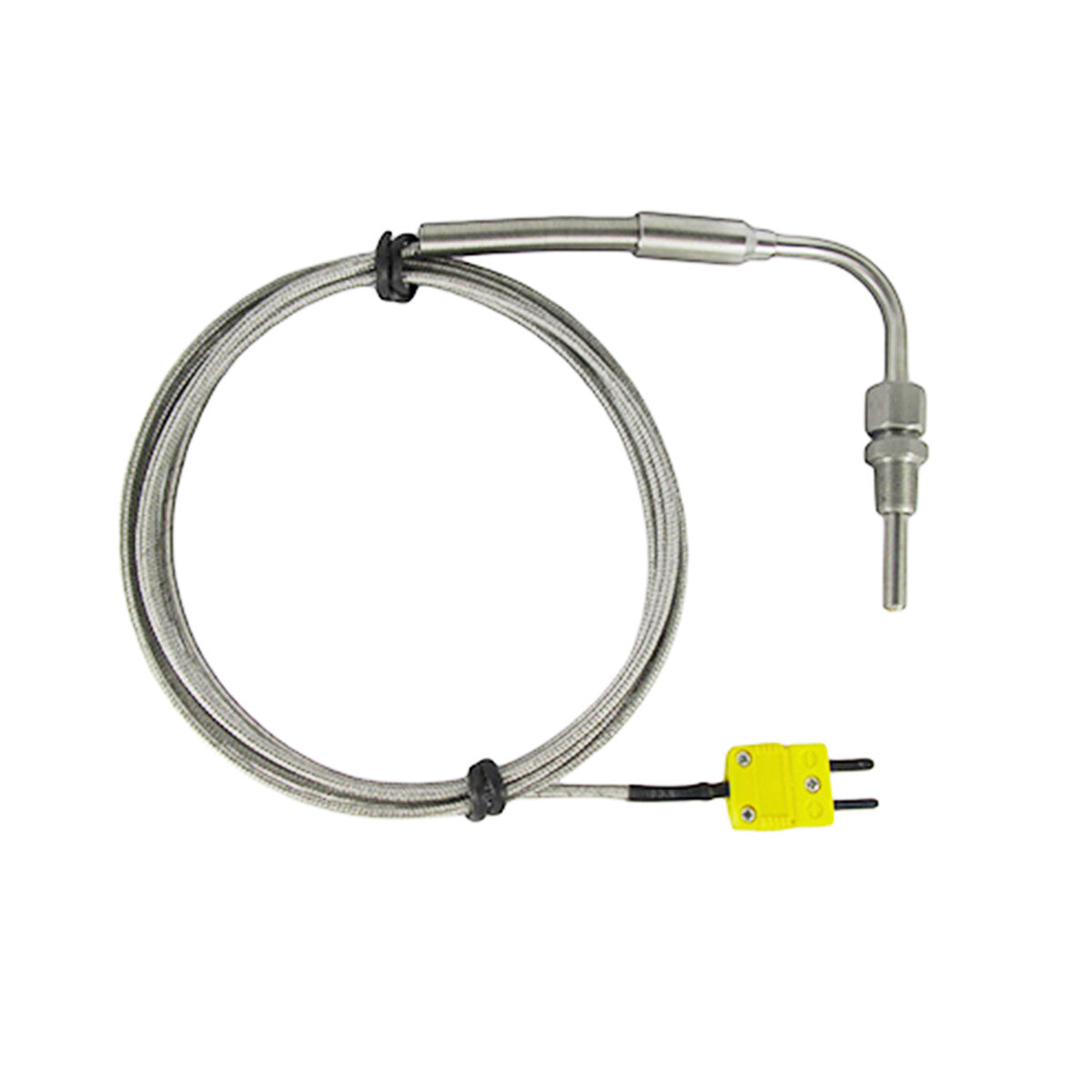

Exposed Tip Fast Response EGT Sensors for Exhaust Gas Temperature Measurement & Mini Connector

Features

100% Brand New Item

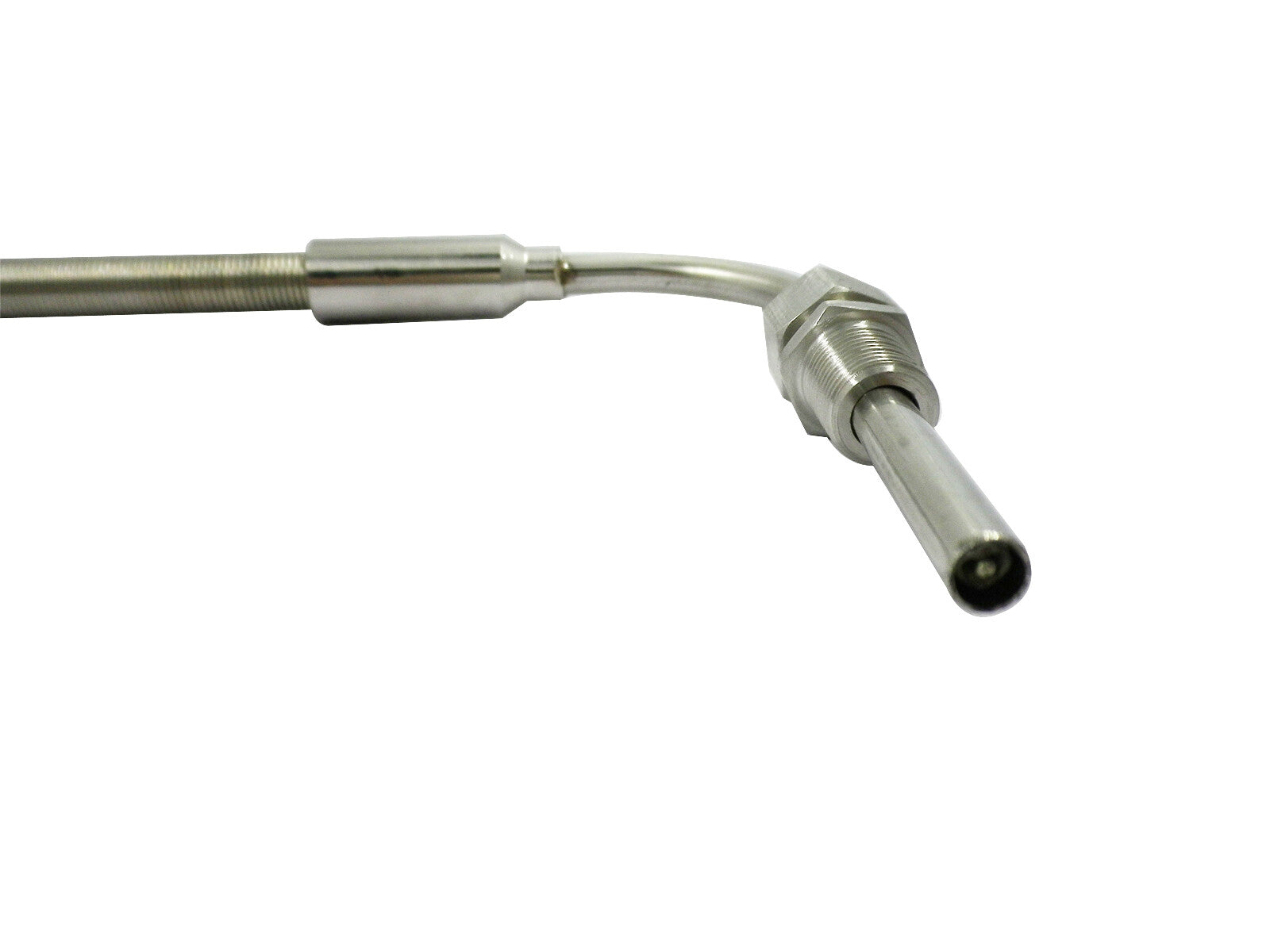

Exposed probe tip for fast response

Made of high quality stainless steel

Compatible with all temperature controllers, meters, EGT gauges with K type thermocouple inputs

Quotations of different lengths of lead wires are available upon request.

Specifications

Type : Ungrounded K Type Thermocouple

Operating Temperature  -100 ~ 1250℃ （-148 ~ 2282℉）

Probe Material  Stainless Steel

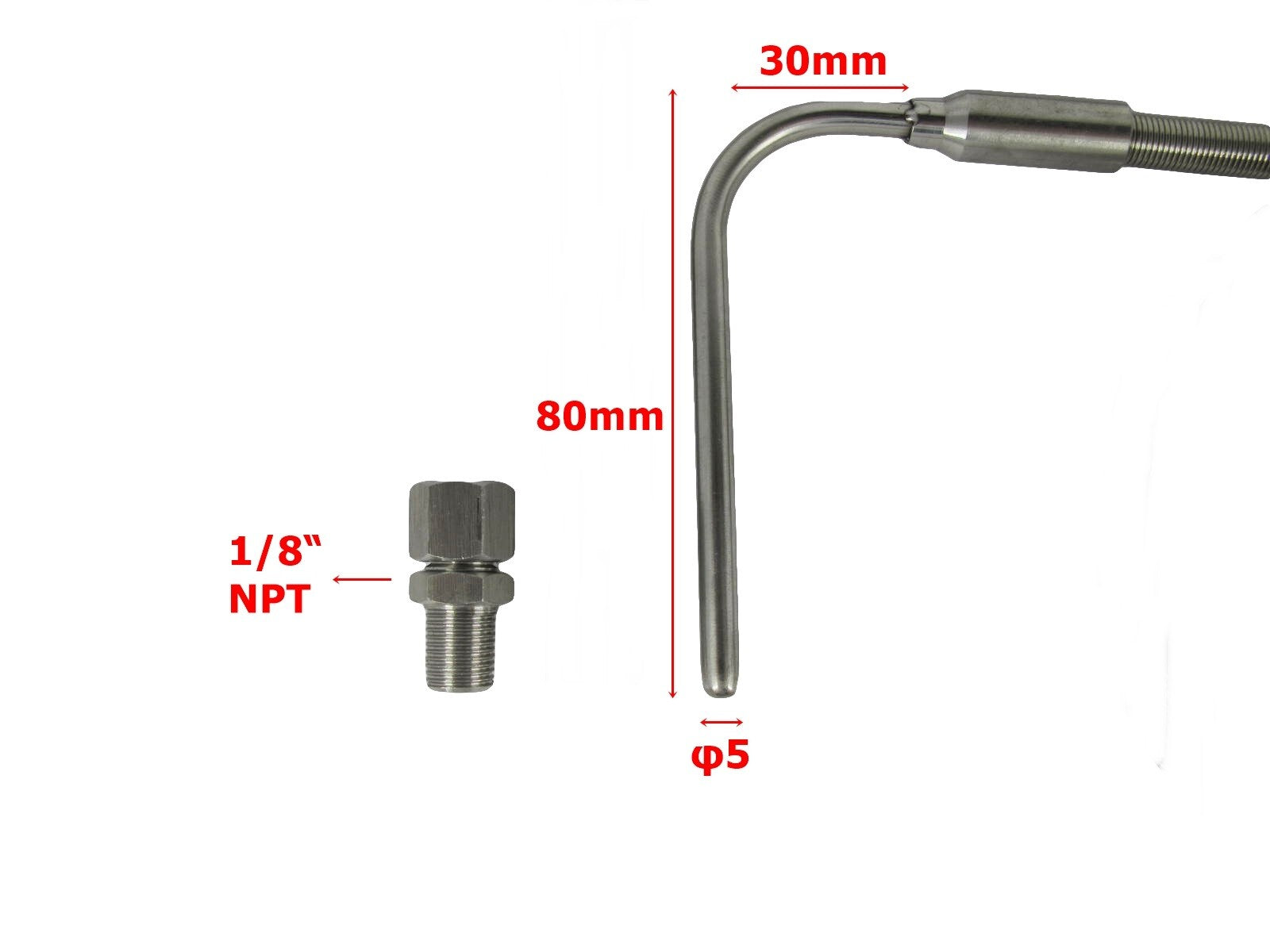

Probe Diameter  5mm / 0.2 inch

Probe Length (Front)  80mm / 3.2 inch

Probe Length (Back)  30mm / 1.2 inch

Threads Size  1/8” NPT

Threads Lock  Adjustable Pressure Lock (Adjustable Length)

Cable Length  1m (3.3 ft) ; 2m (6.6 ft) ; 3m (10 ft); 4m (13.2 ft); 5m (16.5 ft)

Cable External Shielding  Stainless Steel Braiding

Cable Internal Insulation  Fiberglass

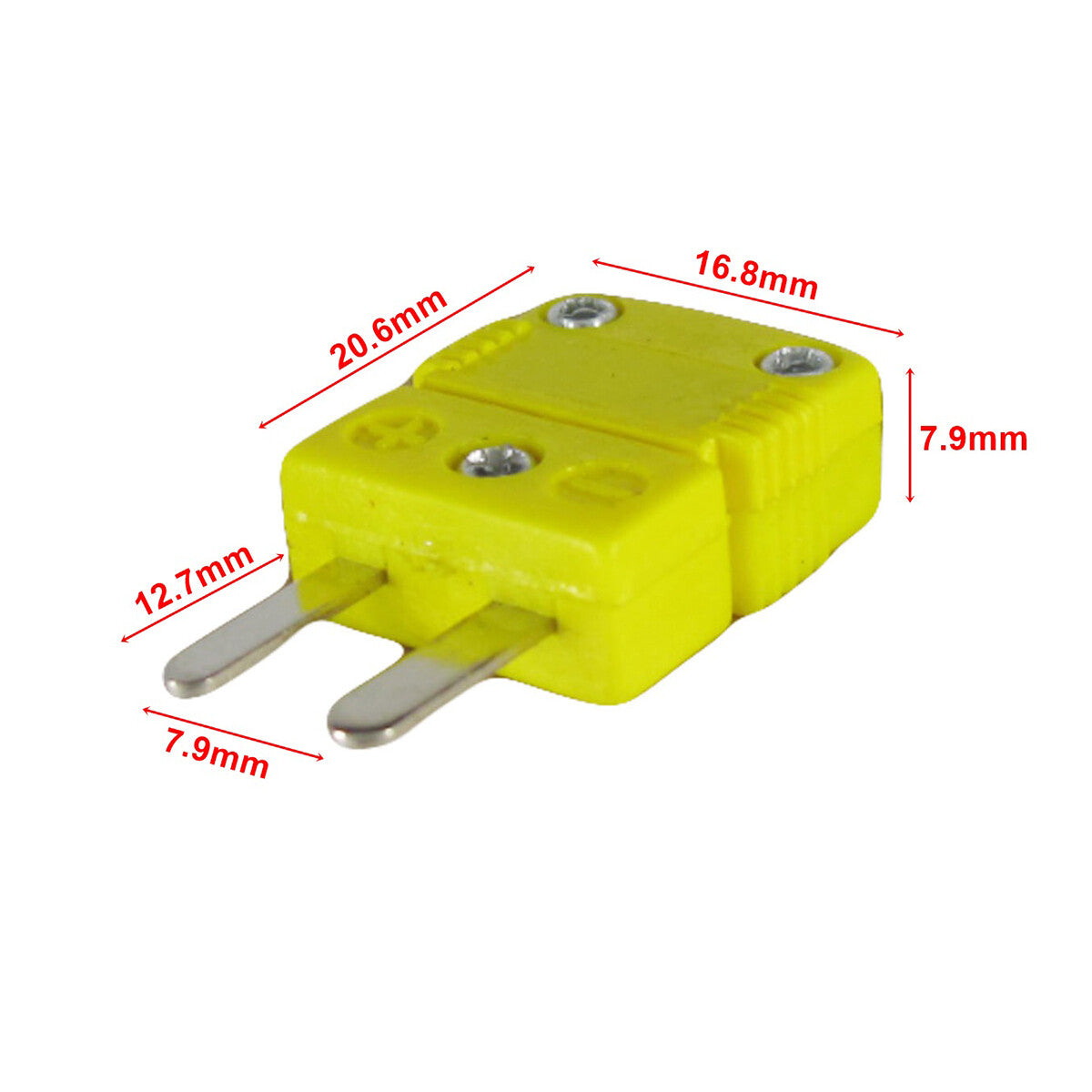

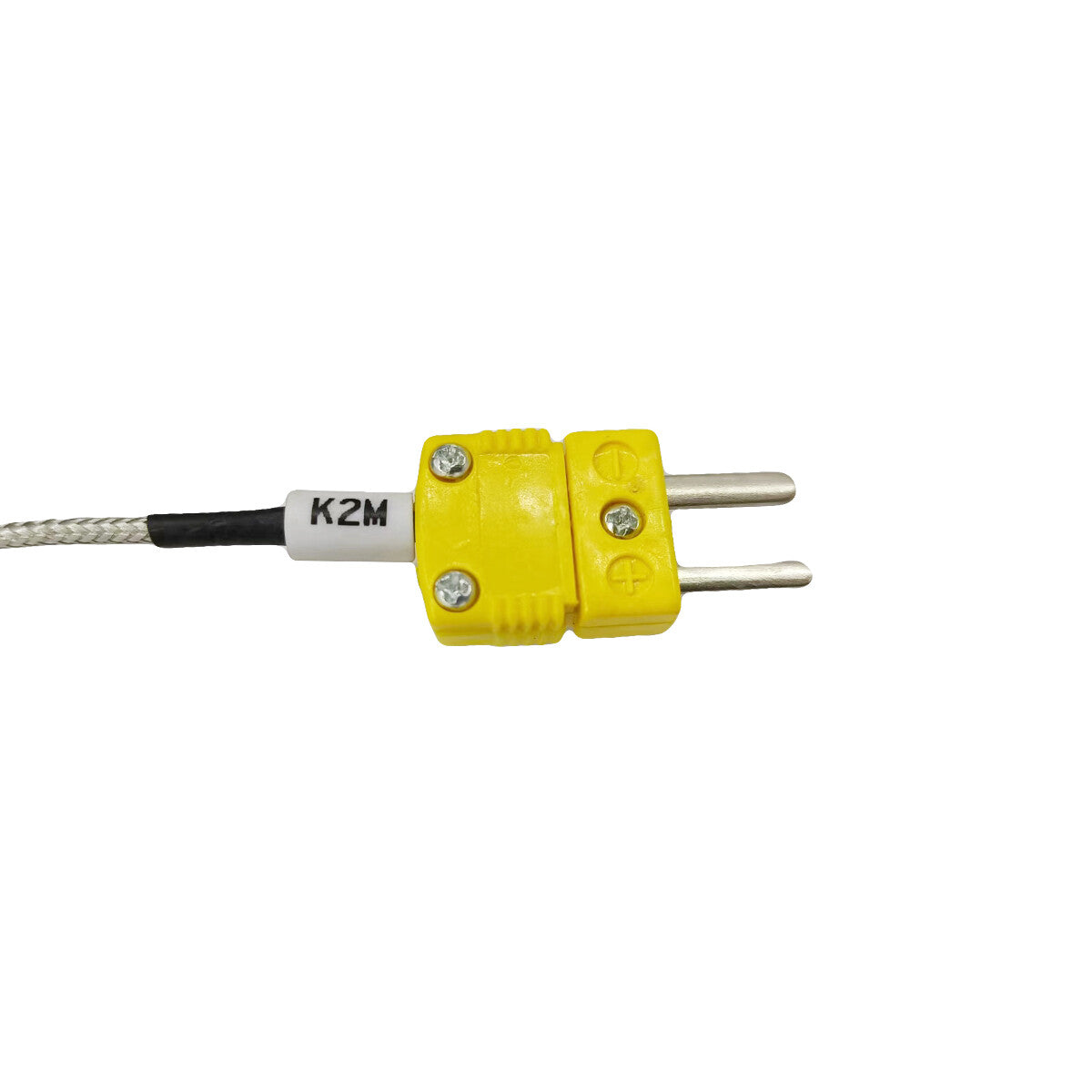

Connector  Standard Mini Connector
