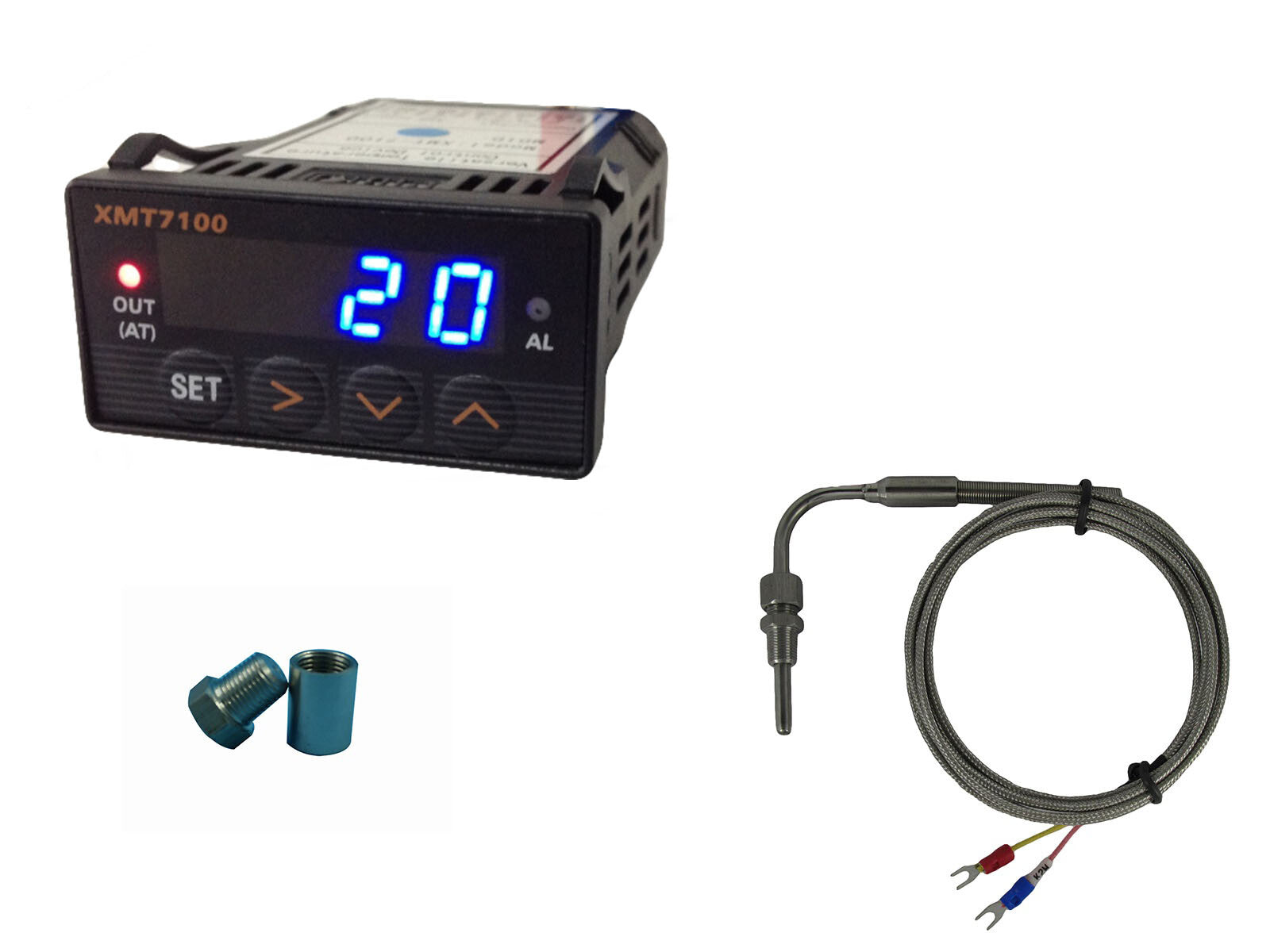

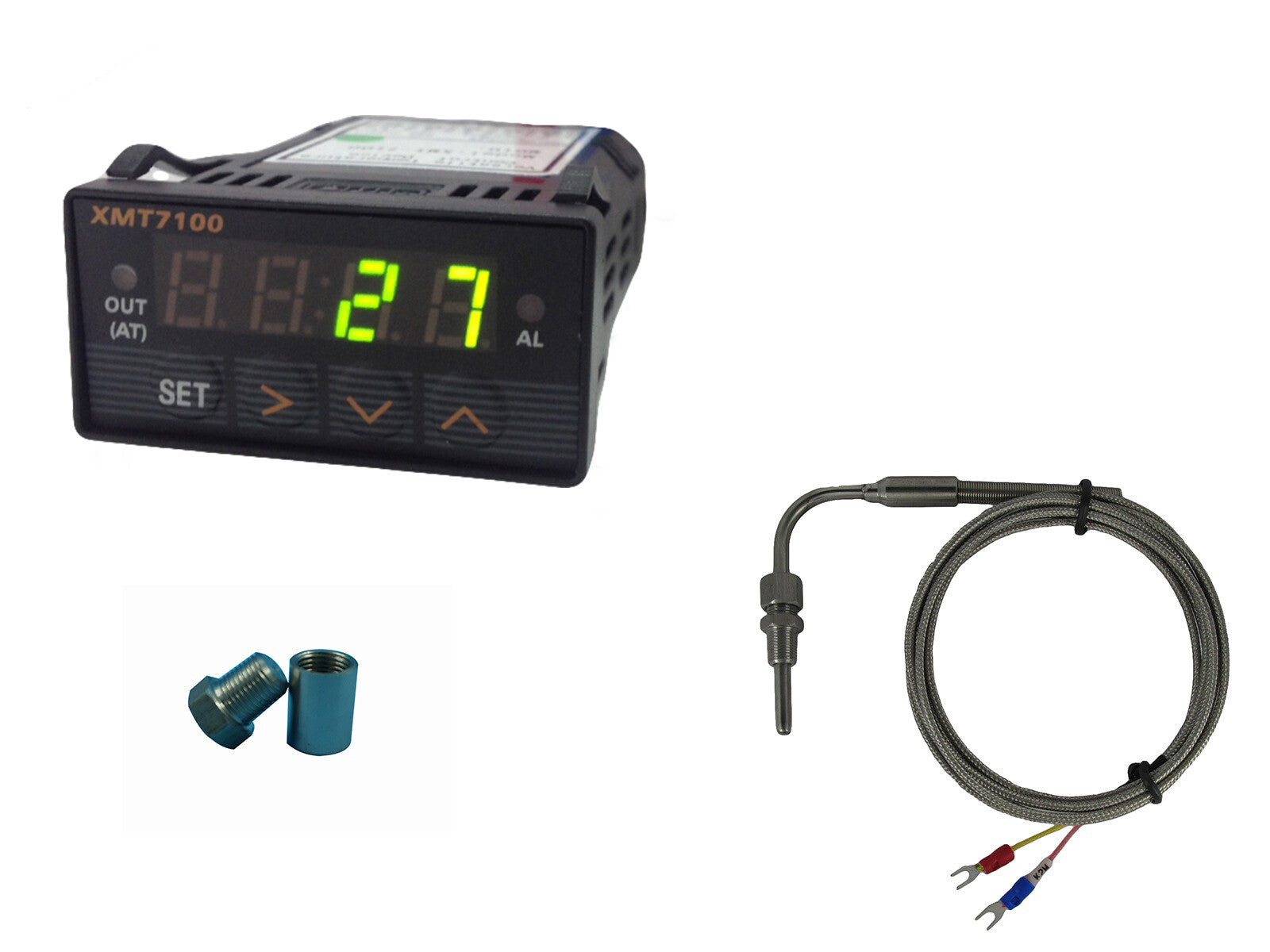

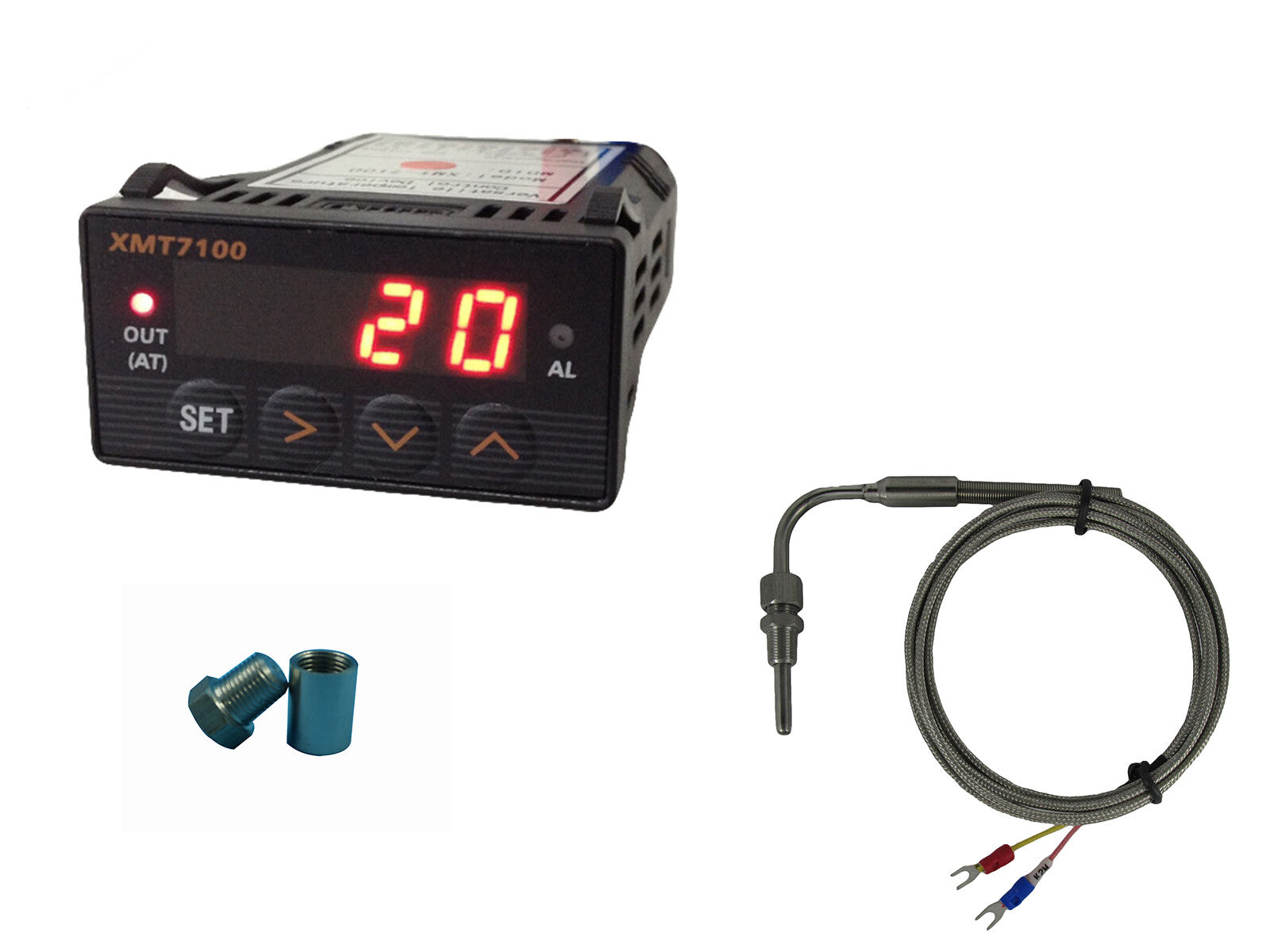

Temperature Gauge with Alarm , EGT K Type Sensors & Weld Bund Combo Kit

Features

100% Brand New item

EGT gauge with alarm output

Small size and easy installation

High quality stainless steel EGT probe against rust

Fashionable red EGT gauge

Stainless steel weld bund with matching plug

This item has been tested in good working condition before auction.

Specifications

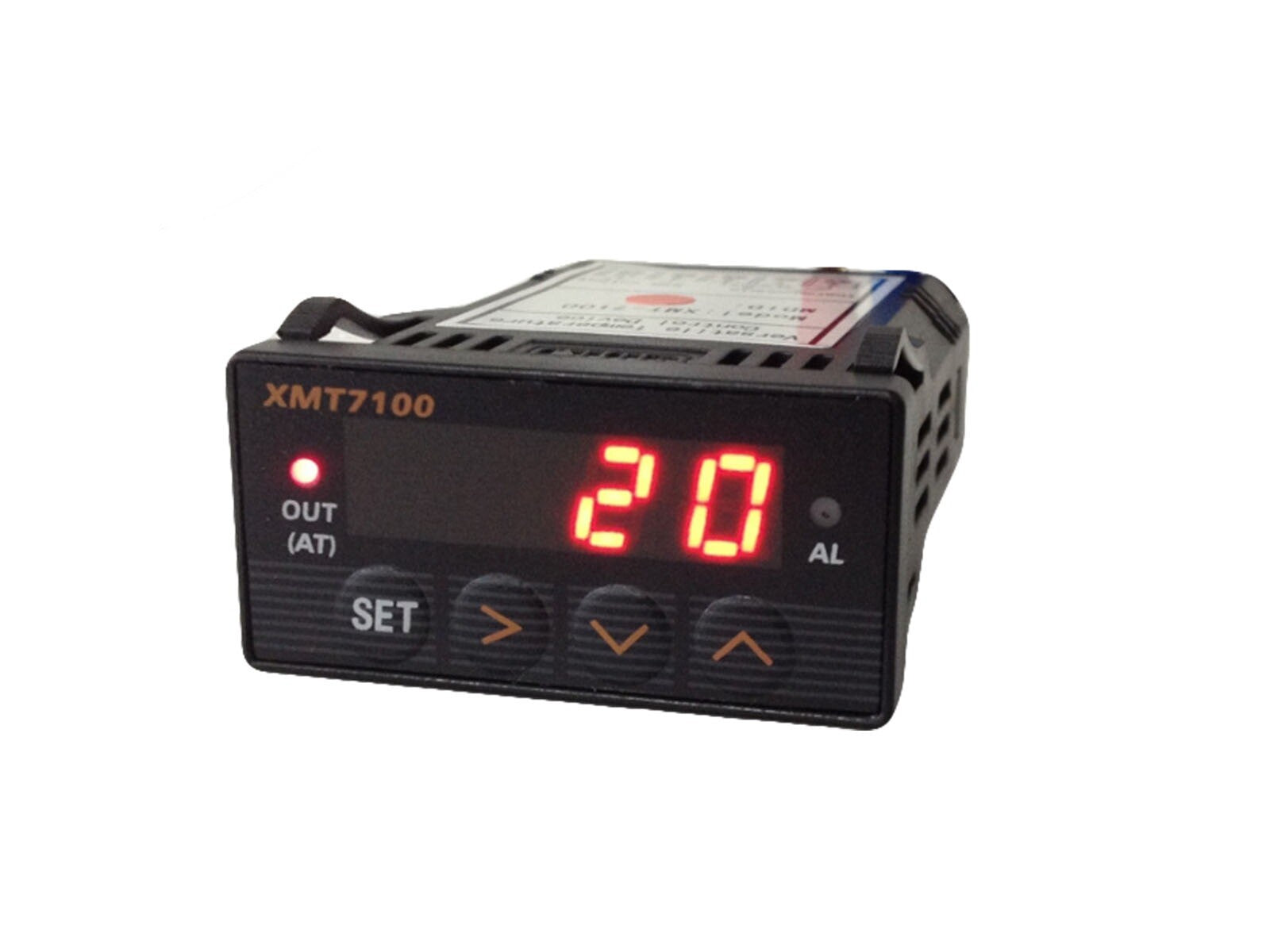

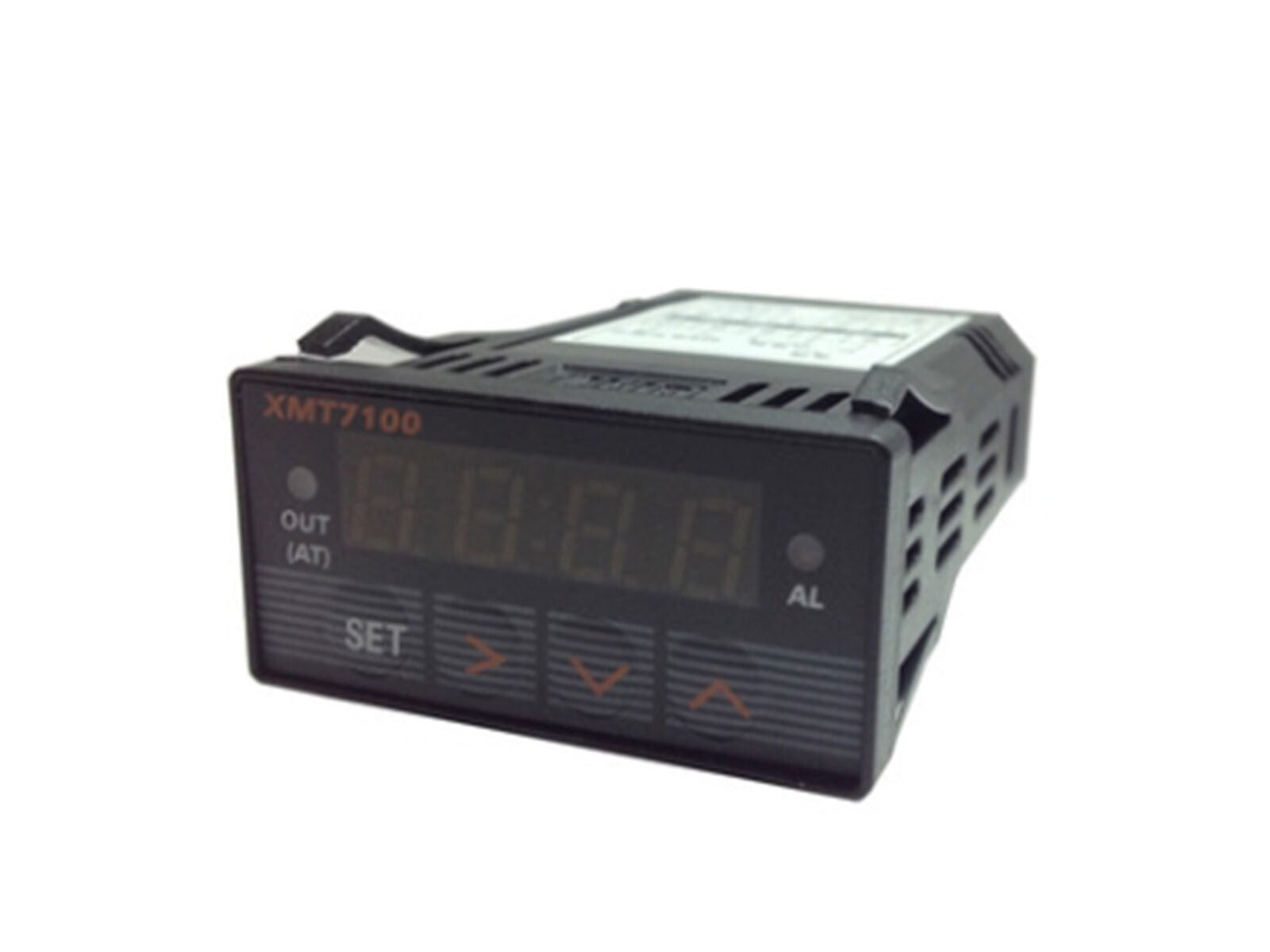

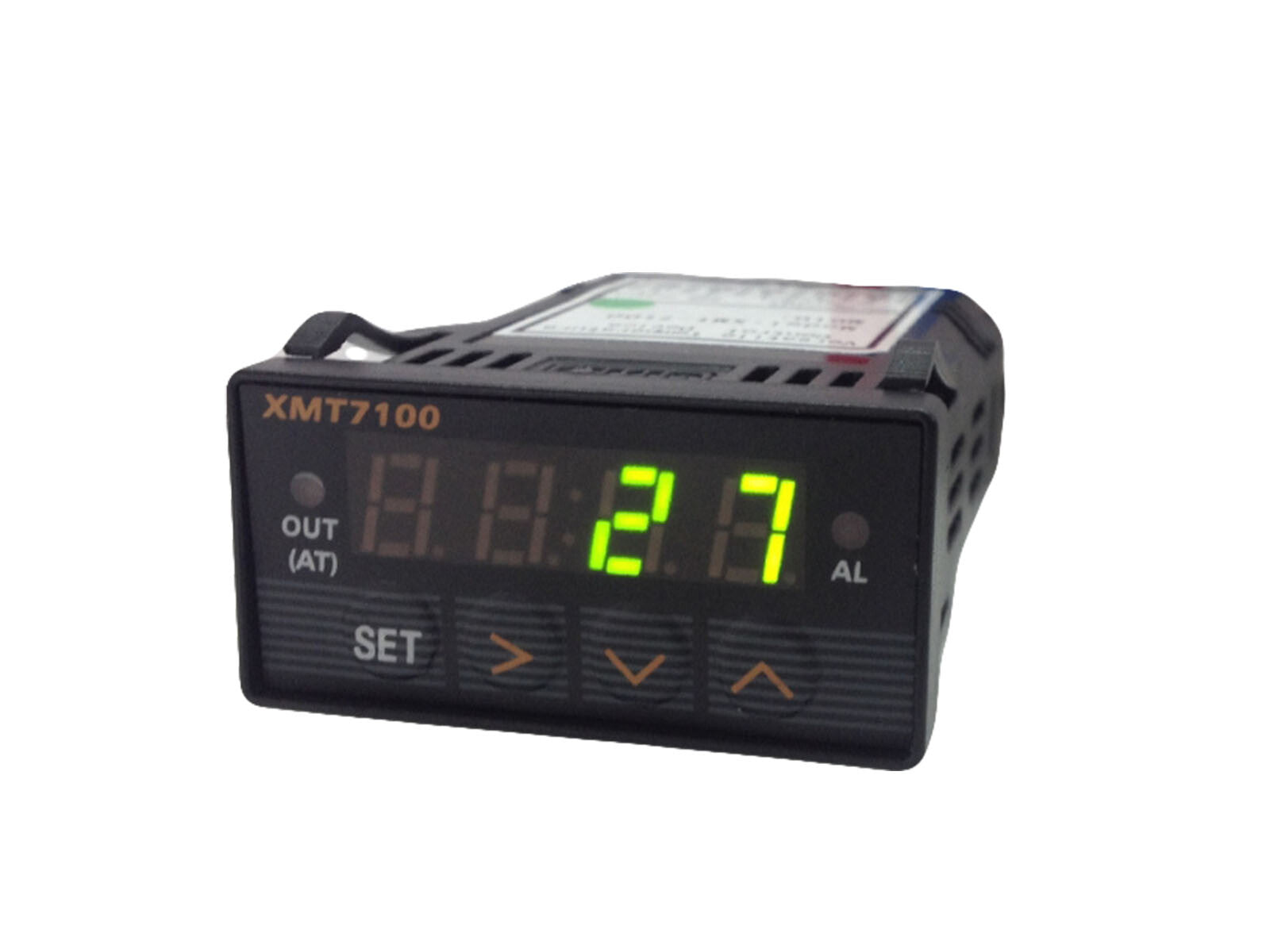

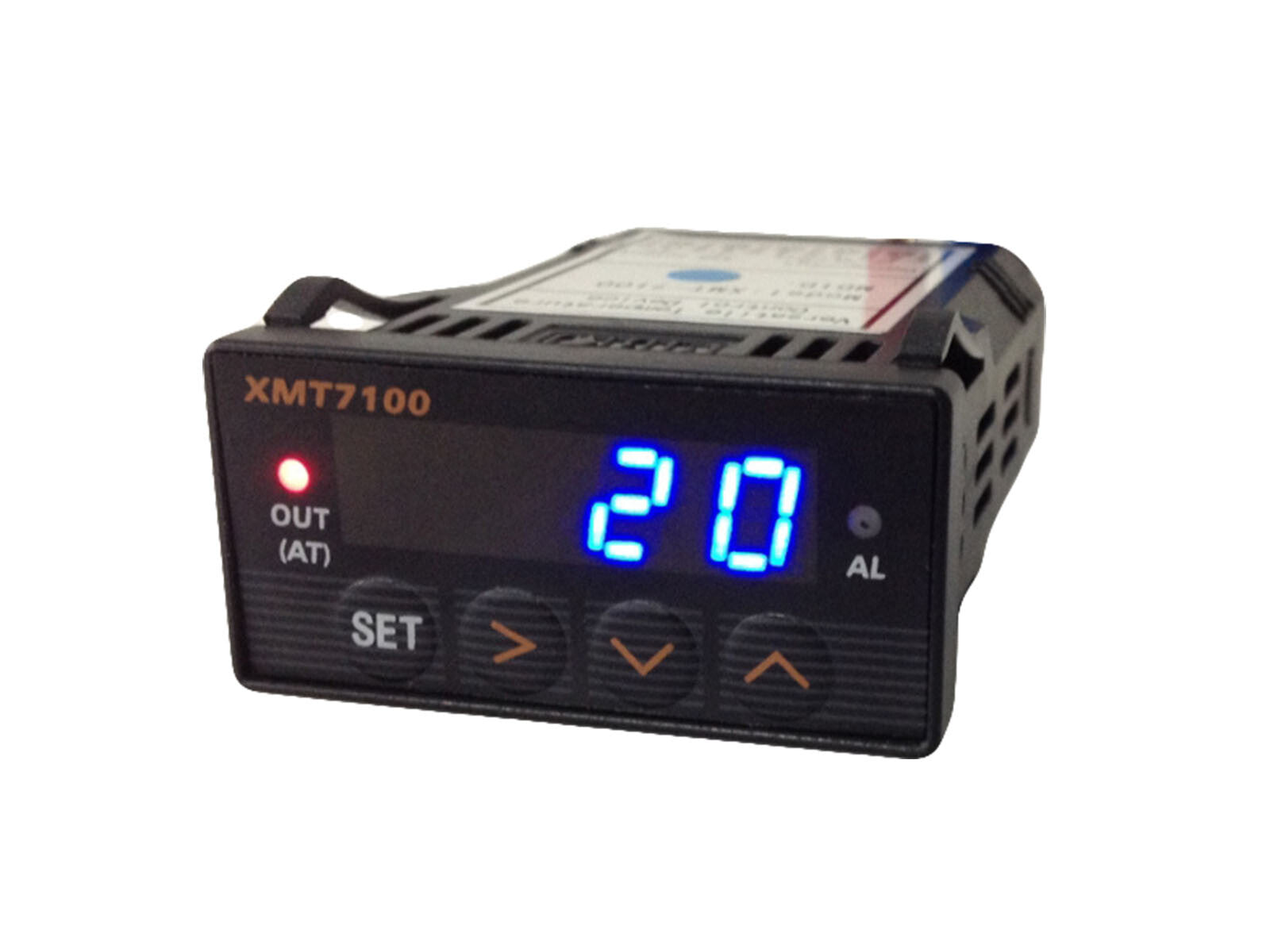

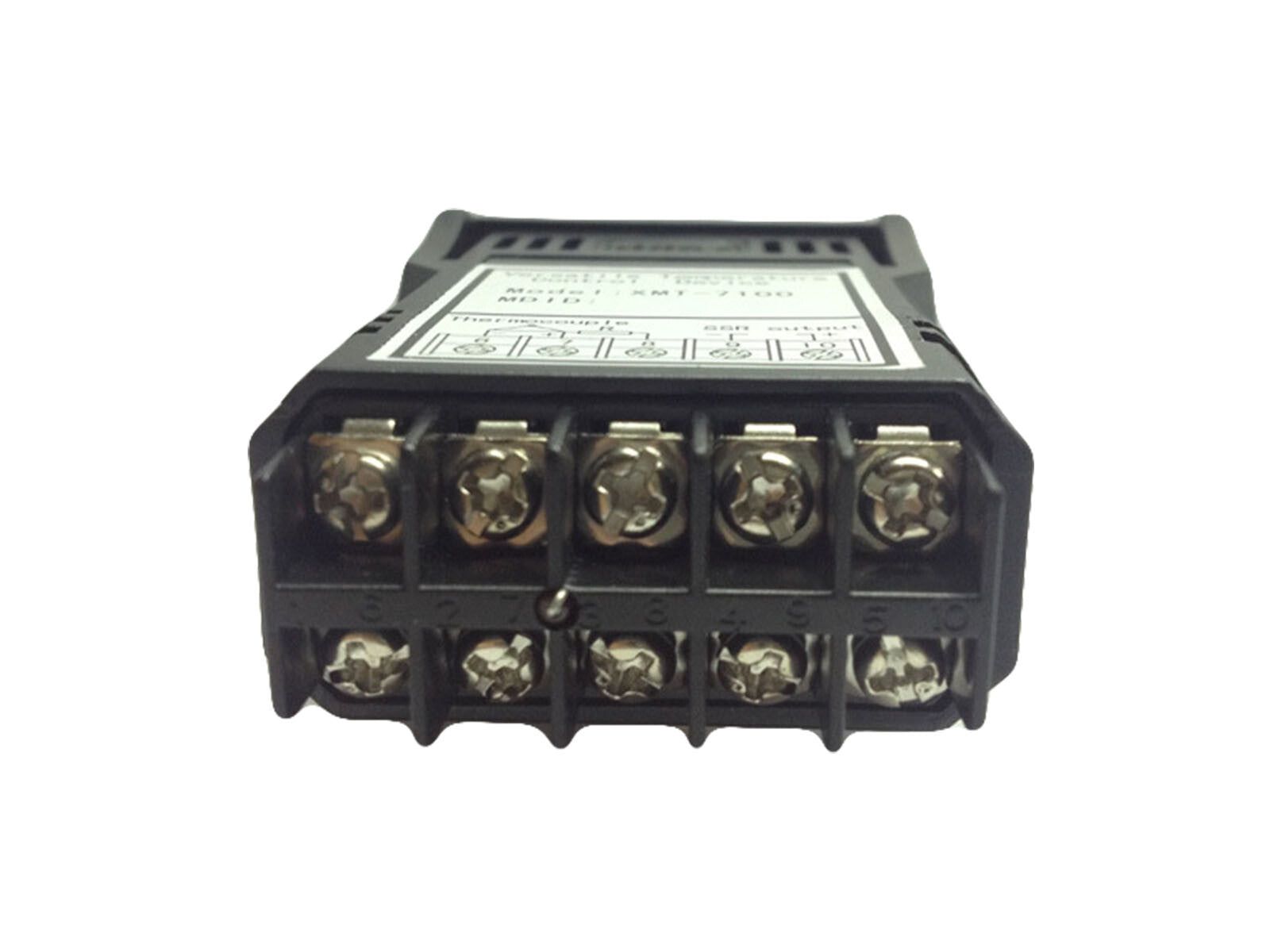

EGT Gauge

Model: XMT7100
Measuring Range: -200~1300 C
Power : 12VDC
Display Type: Red / Blue / Green LED 4 Digits Display
Display Selectable: ºC or ºF
Sensor Input: T,R,J,B,S,K,E,WRe3-25,Cu50,Pt100
Accuracy: 0.2% FS
Resolution: 1ºC, 1°F, or 0.1°C, 0.1°F with Pt100,LED Indicators
Control mode: PID, On-off, Limit
Output mode: Relay contact: 3A at 240VAC

Power consumption: <2 Watt
Panel Cut : 44 mm x 21 mm/2*0.8''
Dimensions: 75mm (W) x 47mm (H) x 23mm(D)/3*1.9*0.9''

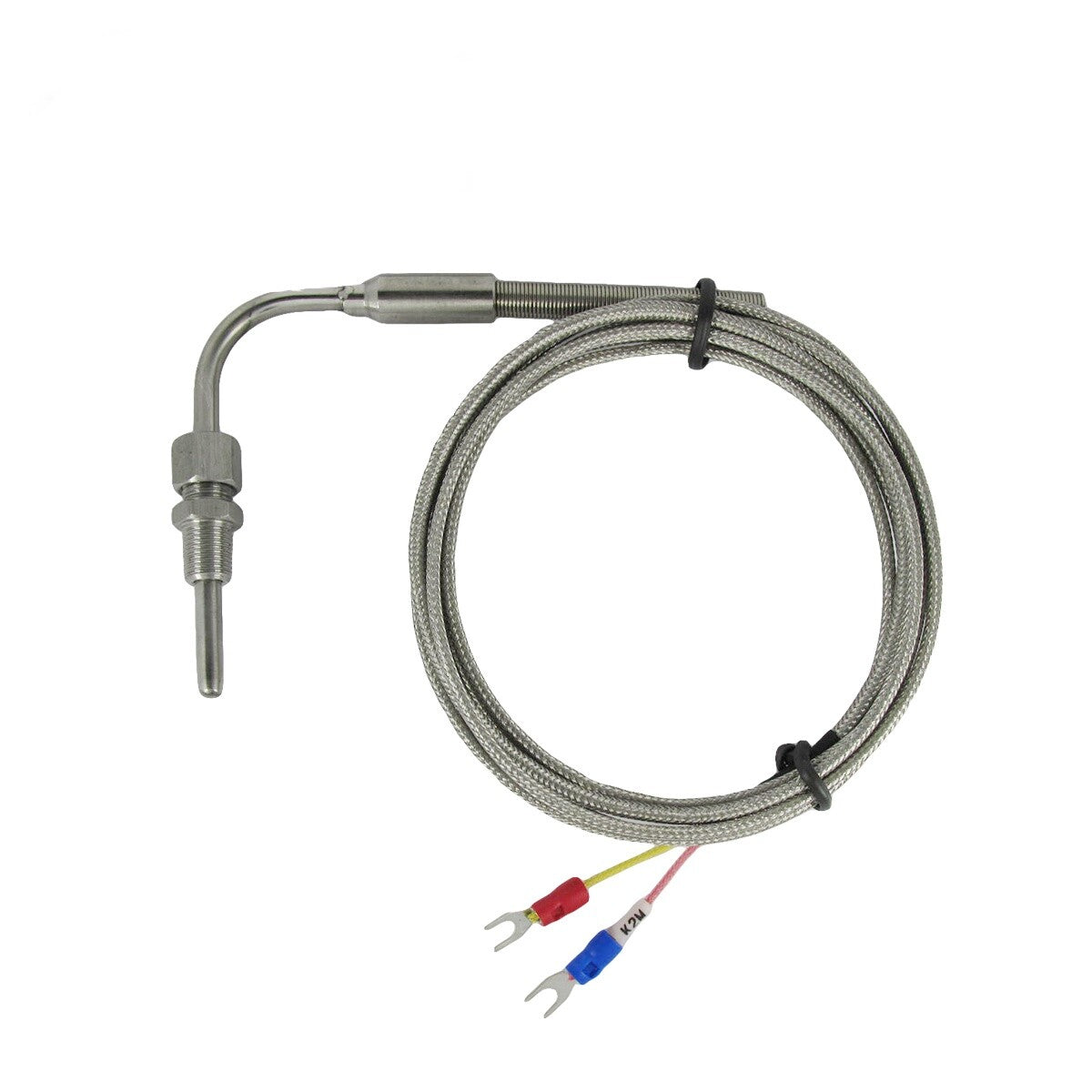

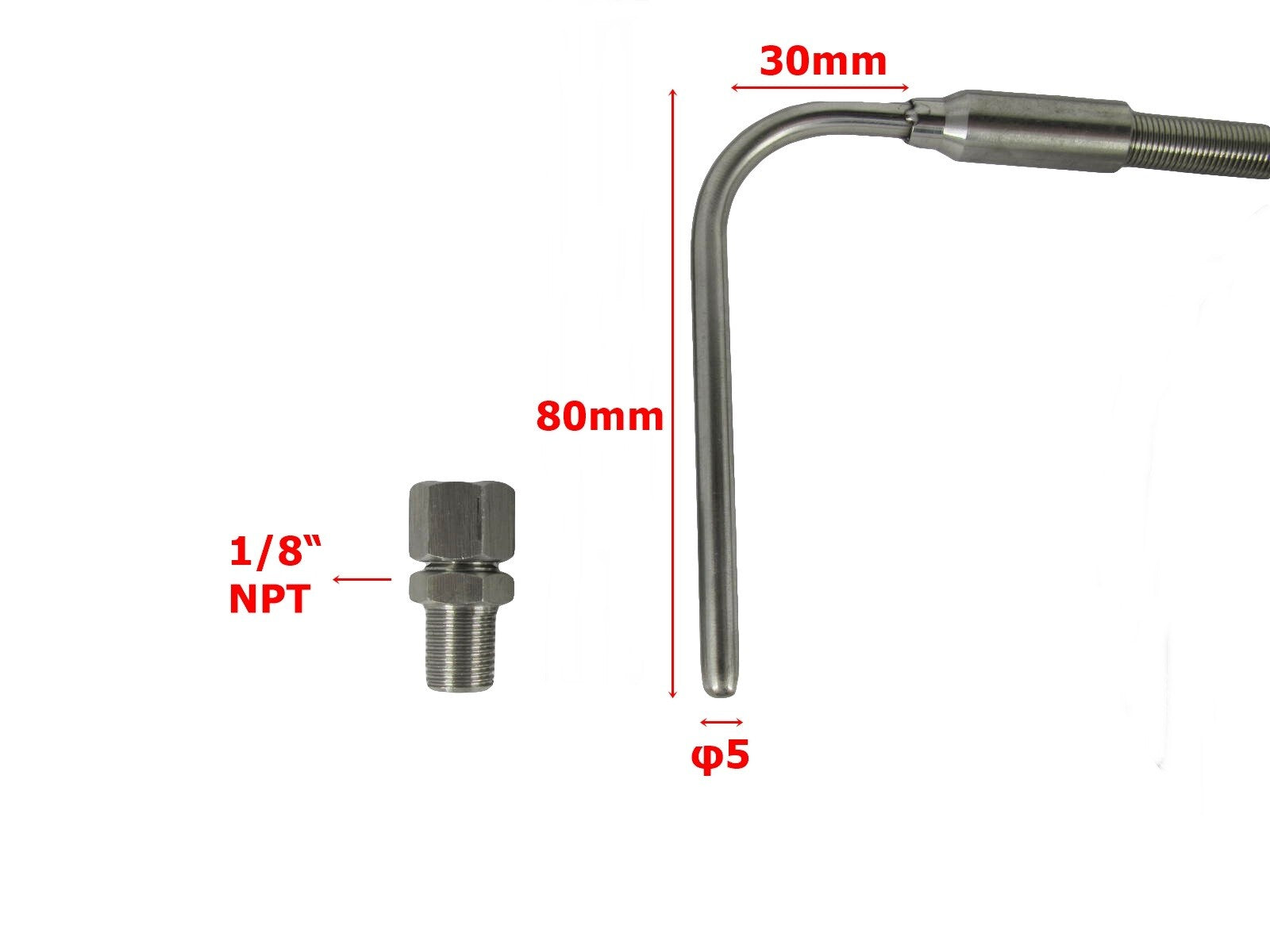

EGT Probe

Temperature Range : -200 ~ 1250 degree Celcius (-300 ~ 2300 F)

Probe Material : Stainless Steel 304

Probe Diameter : 5mm (0.2”)

Probe Length : L1  80mm (3.15”) L2 30mm (1.18”)

Threads : 1/8” NPT Adjustable Compression Fittings

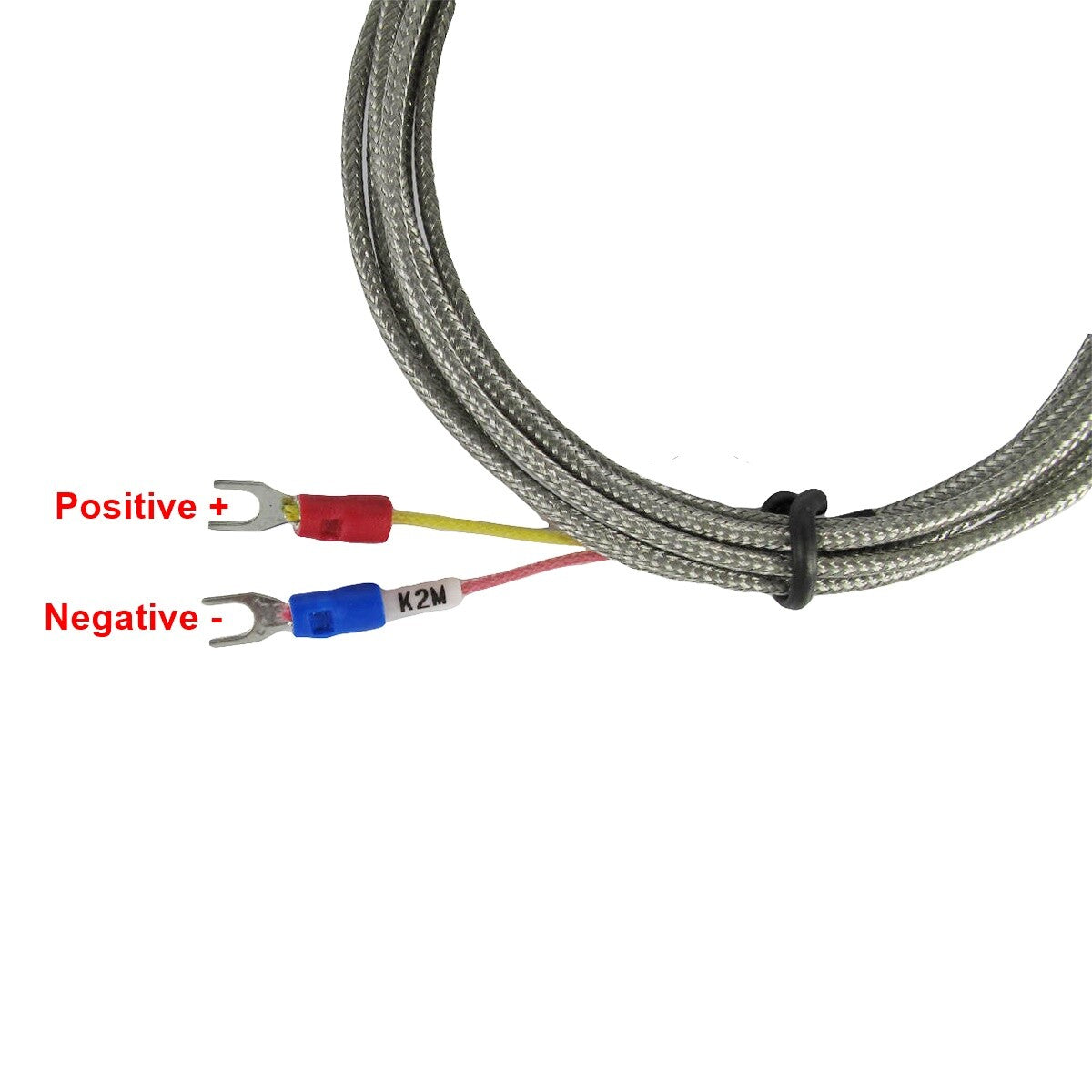

Cable Length : 2m (6.6’)

Cable Insulation : Fiberglass braiding with stainless steel overbraiding

Type : Ungrounded

Connector : Spade connector

Weld Bund with Plug

Material : Stainless Steel

Threads : 1/8” NPT

Outer Diameter : 0.5" (12mm)

Length : 0.6" (15mm)
