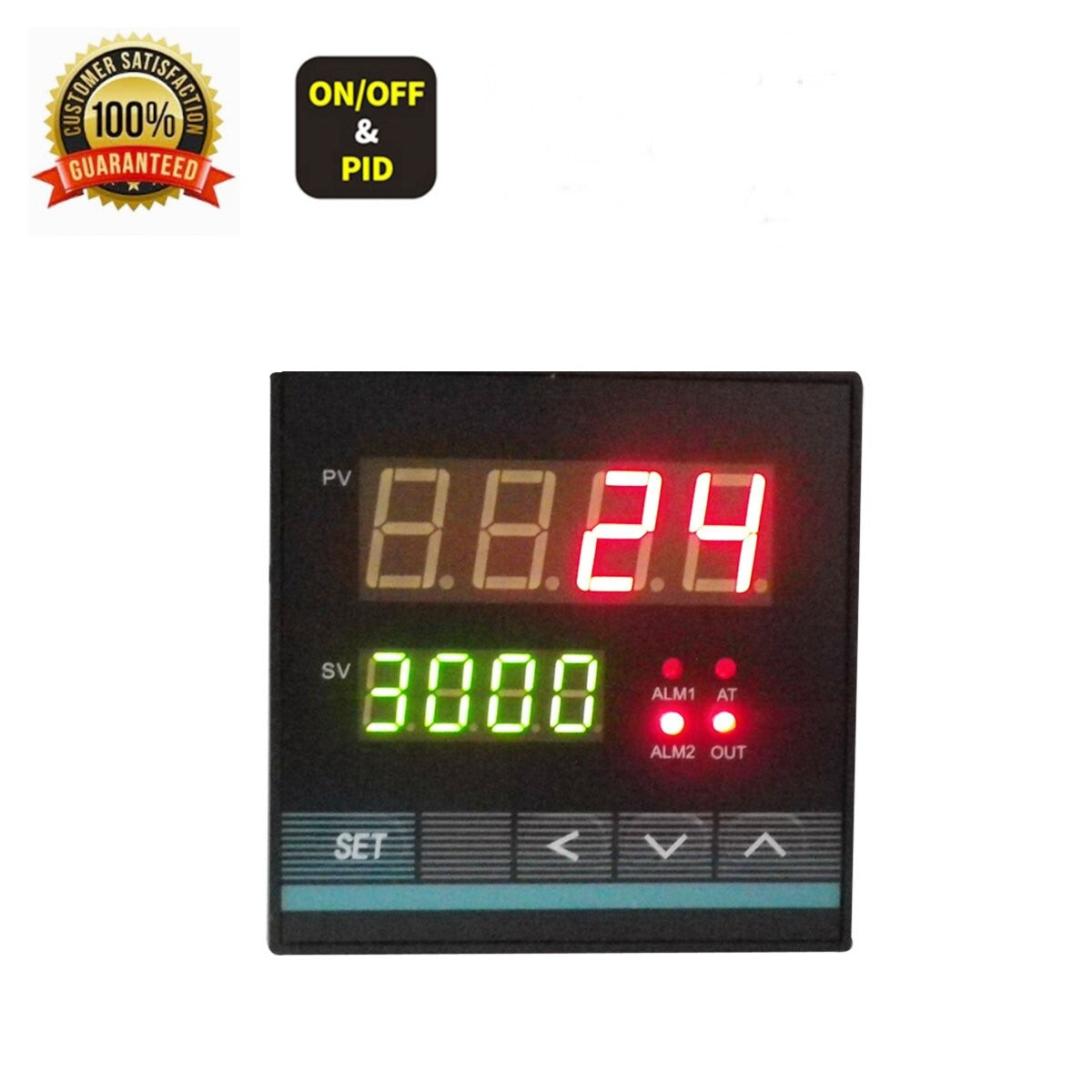

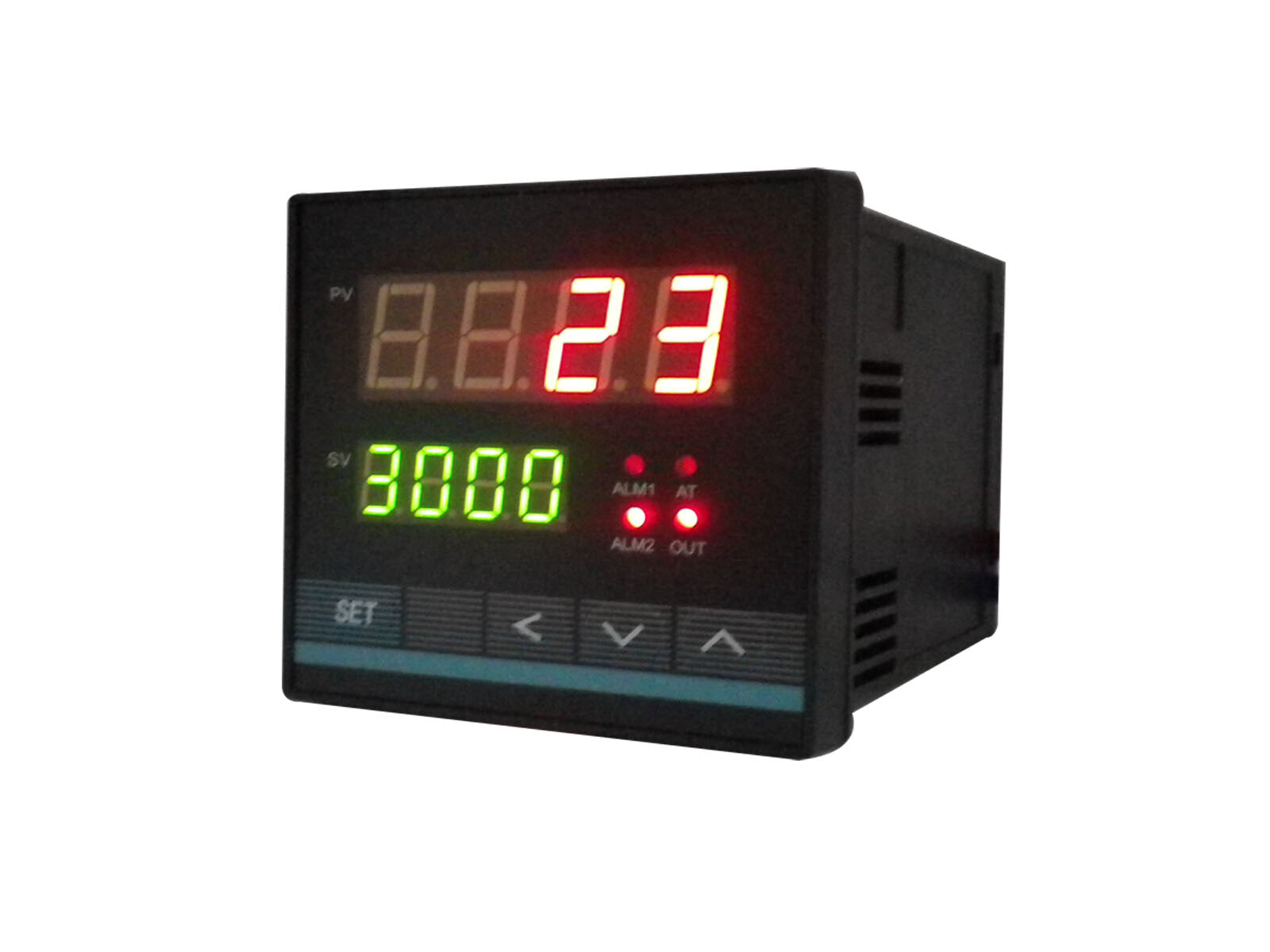

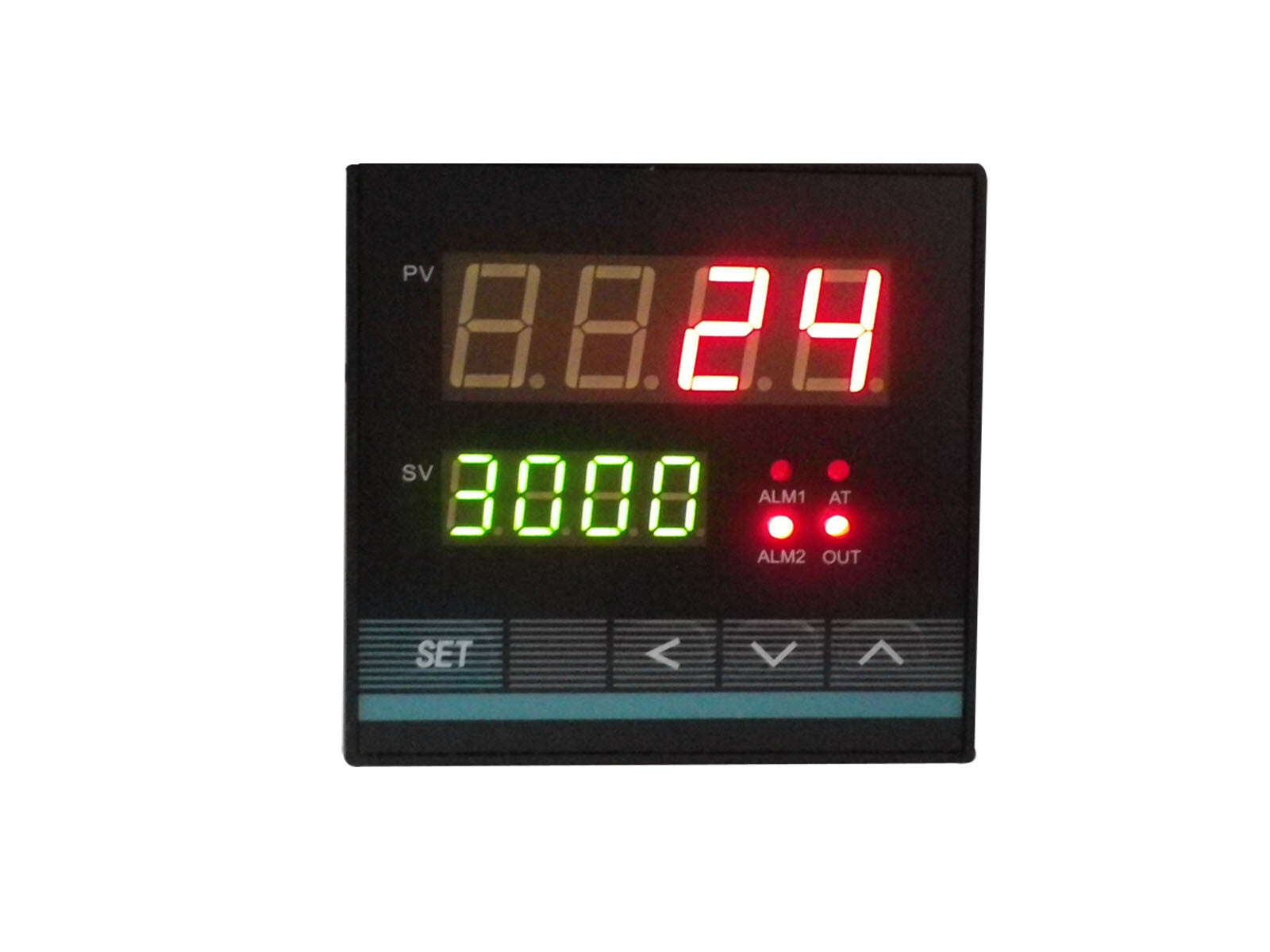

Name: Universal Input PID Temperature Controller with SSR Output & 2 Alarms ( ℃/℉ )
Brand: Procon Store
SKU: MAC-3731
Price: 21.00 CAD
Availability: InStock

Universal Input PID Temperature Controller with SSR Output & 2 Alarms ( ℃/℉ )

$21.00

$21.00 $0.00

Universal Input PID Temperature Controller with SSR Output & 2 Alarms ( ℃/℉ )

$21.00

$21.00 $0.00

Universal Input PID High Temperature Controller with SSR Output & 2 Alarms (Max 1250 ℃/2280℉ )

Fast Shipping to US, Canada, Europe in 1-3 weeks

Specifications

Input Sensors	K,J,R,S,B,E N,T,PT100,Cu50…
Display	Celcius / Fahrenheit (switchable)
Output 1	SSR (9VDC, 20mA)
Alarm Output 1	Relay 5A (250VAC)
Alarm Output 2	Relay 5A (250VAC)
Control Method	PID control
Sampling Time	0.5 second
Power Supply	90 ~ 260 VAC 50/60Hz
Power Consumption	4W
Ambient Temperature	-10 ~ 50 degree Celcius /14 ~ 122 degree Fahrenheit
Ambient Humidity	35 - 85 %
Dimensions	72(H) x 72(L) x 80(D)mm/2.84”(H) x 2.84”(L) x 3.15”(D)
Panel Cut	67 x 67 mm / 2.64” x 2.64”

Programmable Inputs (Display Range)
K	-200 ~ 1250 C	Wire 3/25	0 ~ 2300 C
E	-200 ~ 900 C	Wire 5/26	0 ~ 2300 C
S	0 ~ 1700 C	PT100	-200 ~ 600 C
B	-400~ 1800 C	Cu100	-50 ~ 150 C
J	0 ~ 750 C	Cu50	-50 ~ 150 C
T	-250 ~ 350 C	BA1	-200 ~ 650 C
R	0 ~ 1700 C	BA2	-200 ~ 500 C
N	-40 ~ 1200 C	G53	-50 ~ 150 C

Features

100% Brand New Item

Univeral sensors input for all applications

Wide temperature range

Accurate PID control with automatic settings
