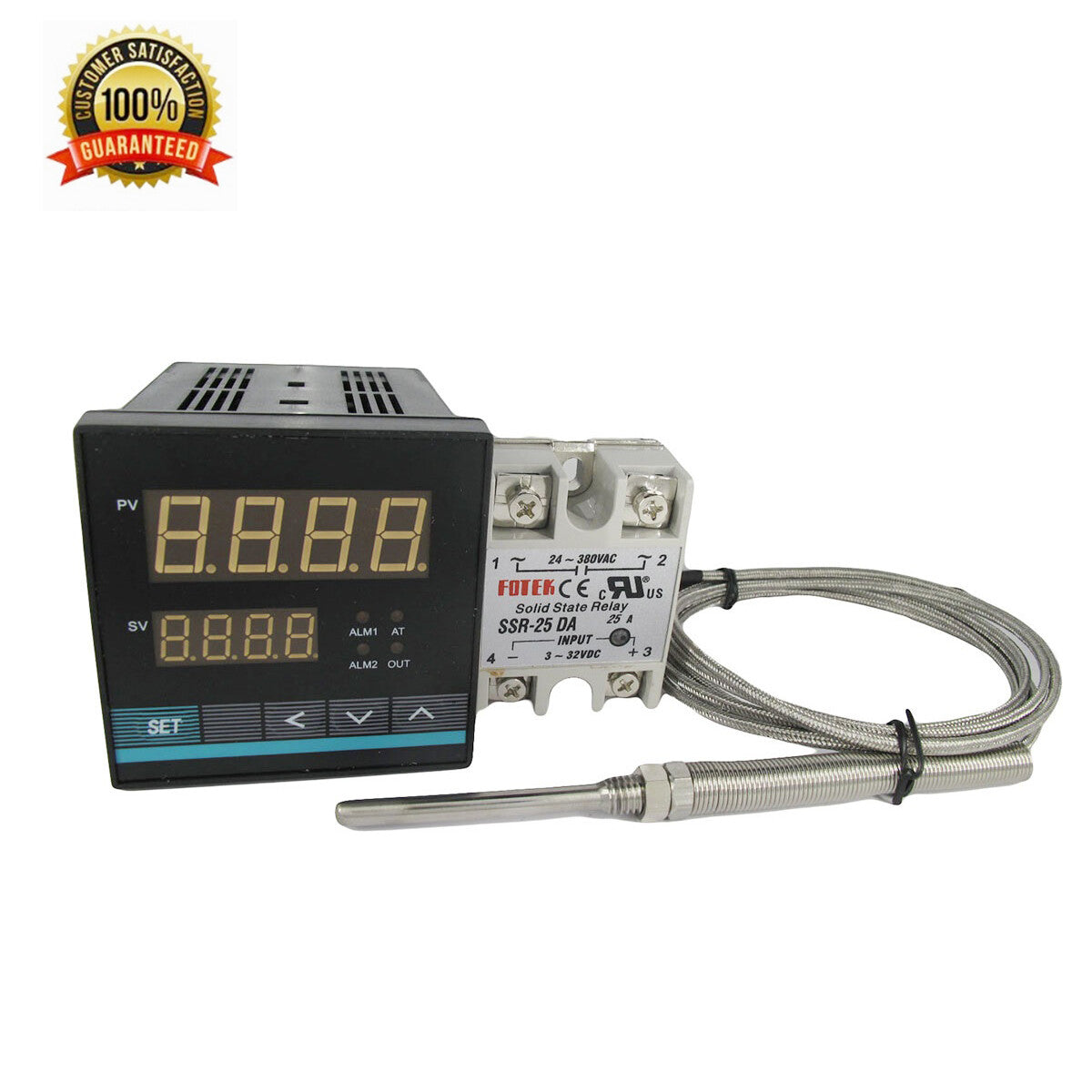

Name: Universal PID Temperature Controller with SSR High Temp Probe ℃ / ℉ (2 Alarms)
Brand: Procon Store
SKU: KC-3001
Price: 29.00 CAD
Availability: InStock

Universal PID Temperature Controller with SSR High Temp Probe ℃ / ℉ (2 Alarms)

$29.00

$29.00 $0.00

Universal PID Temperature Controller with SSR High Temp Probe ℃ / ℉ (2 Alarms)

$29.00

$29.00 $0.00

Universal PID Temperature Controller with SSR High Temp Probe ℃ / ℉ (2 Alarms)

Fast Shipping to US, Canada, Europe in 1-3 weeks

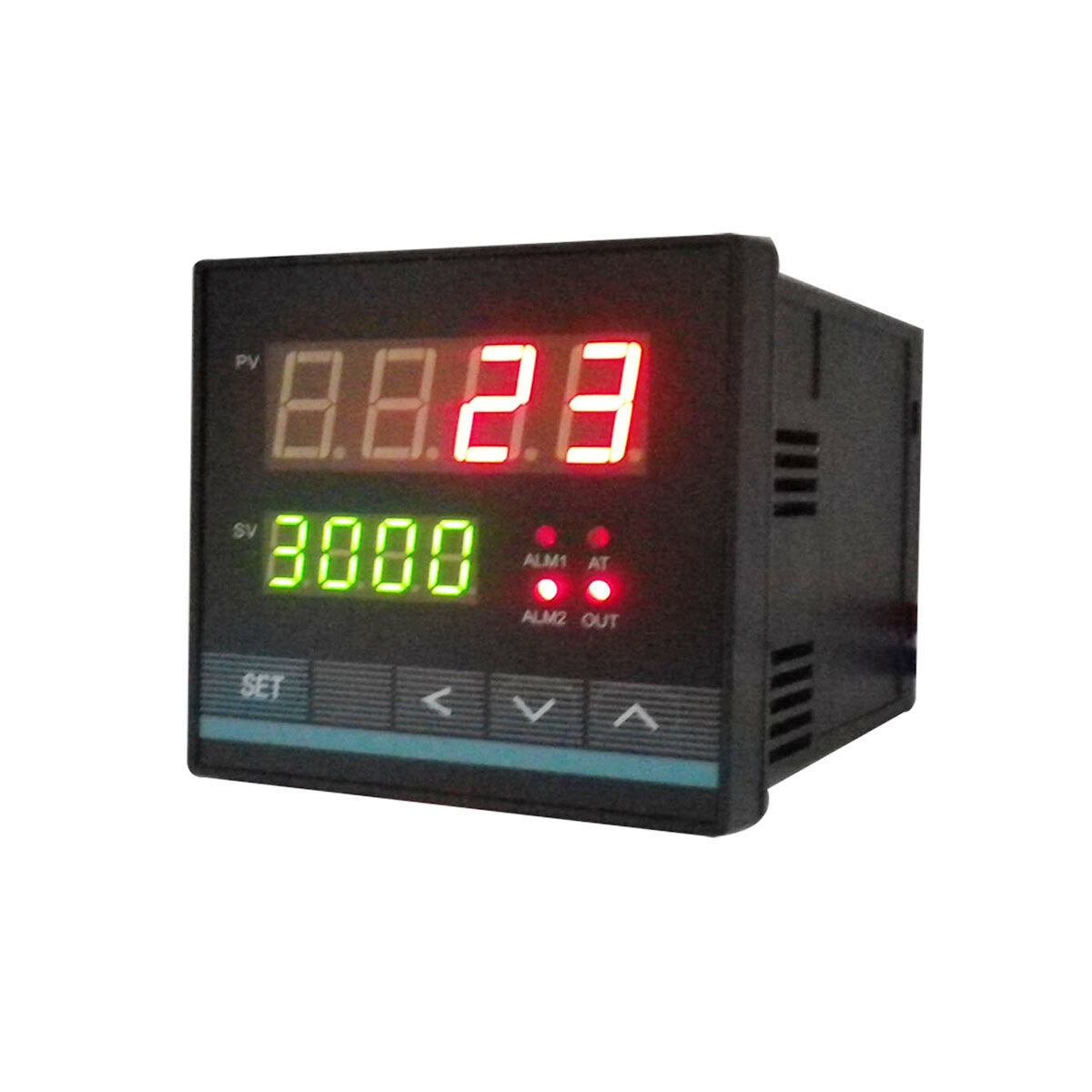

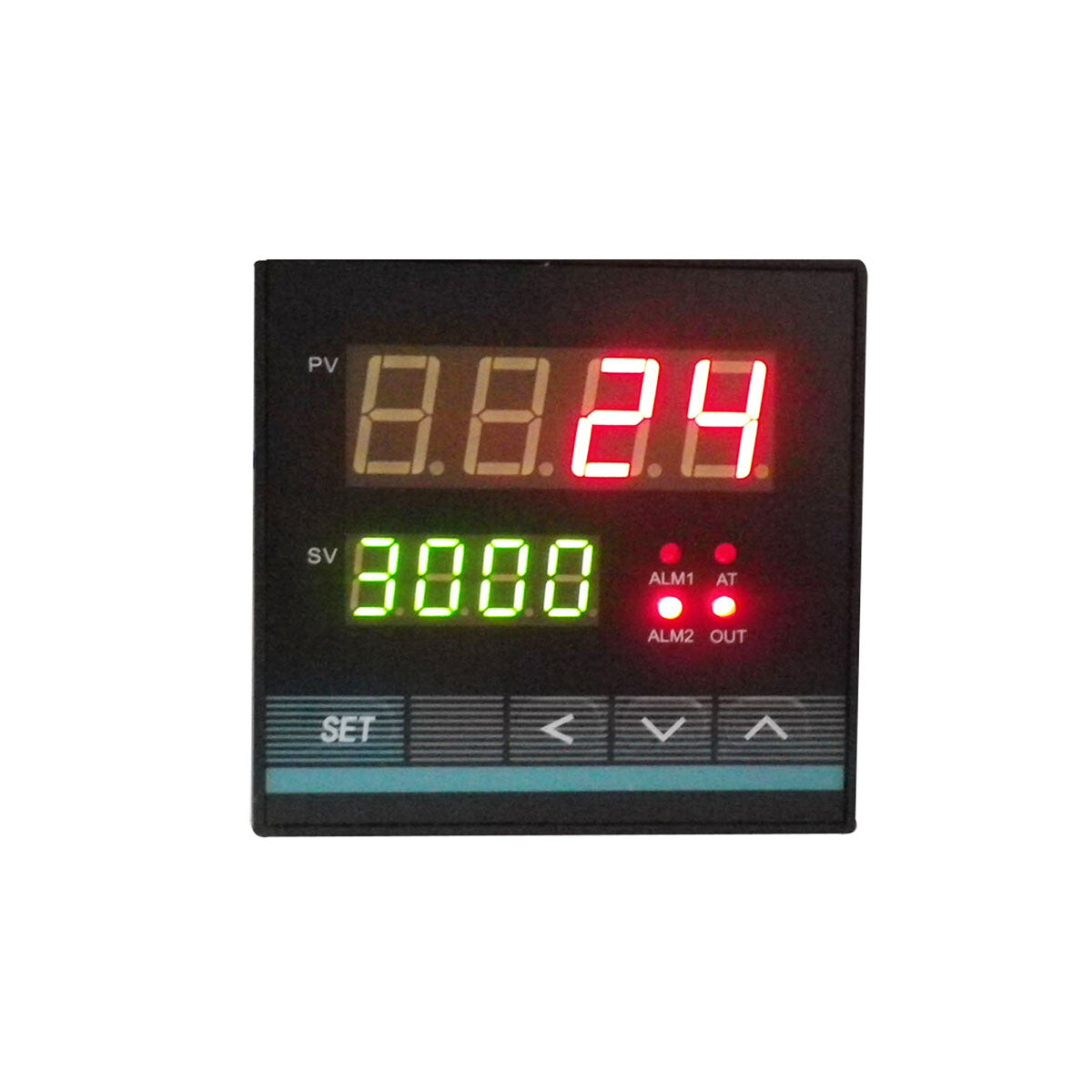

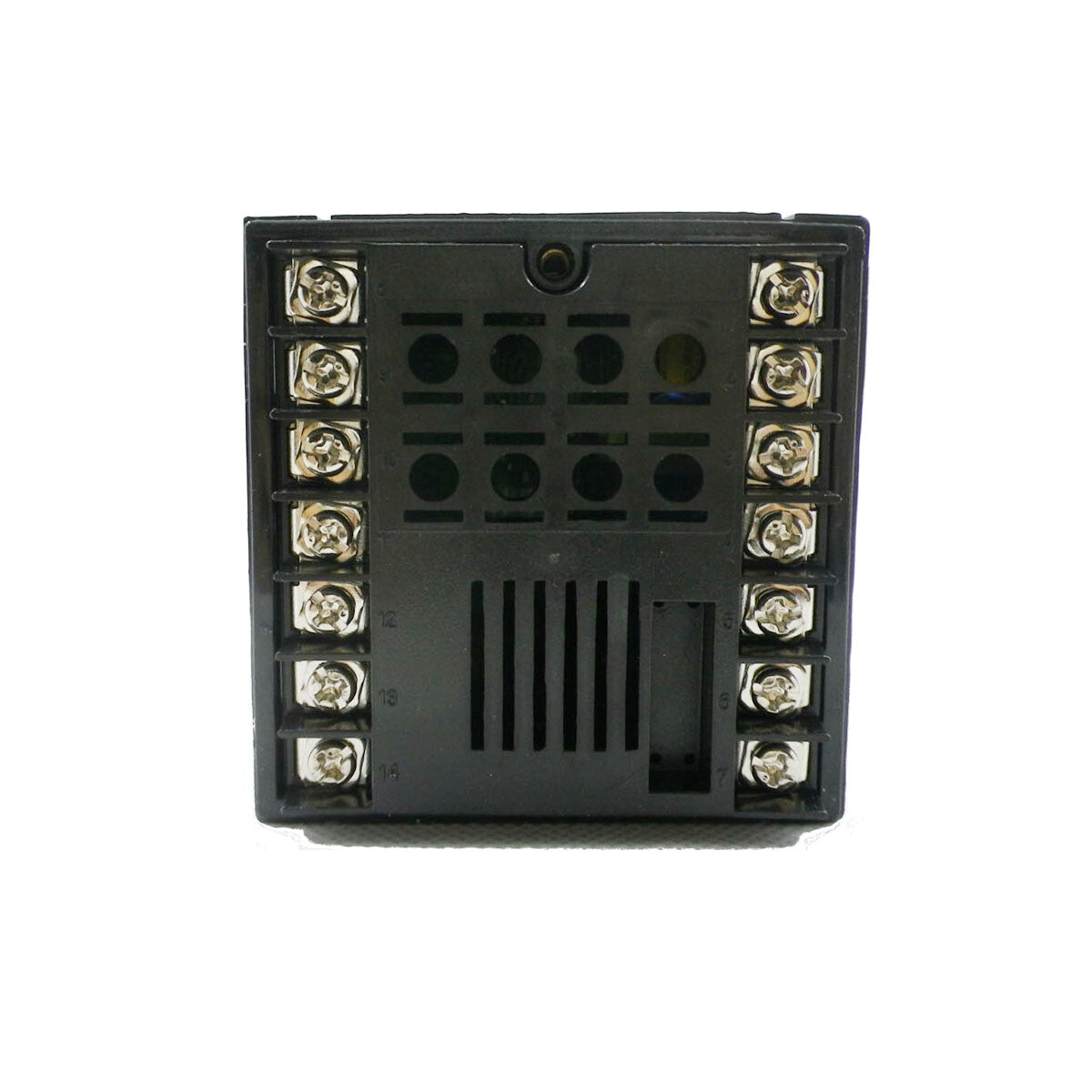

Temperature Controller Specifications

Input Sensors K,J,R,S,B,E N,T,PT100,Cu50…

Display Celcius / Fahrenheit (switchable)

Output 1 SSR (9VDC, 20mA)

Alarm Output 1 Relay 5A (250VAC)

Alarm Output 2 Relay 5A (250VAC)

Control Method PID control

Sampling Time 0.5 second

Power Supply 90 ~ 260 VAC 50/60Hz

Power Consumption 4W

Ambient Temperature -10 ~ 50 degree Celcius /14 ~ 122 degree Fahrenheit

Ambient Humidity 35 - 85 %

Dimensions 72(H) x 72(L) x 80(D)mm/2.84”(H) x 2.84”(L) x 3.15”(D)

Panel Cut 67 x 67 mm / 2.64” x 2.64”

Programmable Input Range :

K : -200 ~ 1250 Celcius (-328 ~2282 Fahrenheit)
S : 0 ~ 1700 Celcius (32~3092 Fahrenheit)

R : 0 ~ 1700 Celcius (32~3092 Fahrenheit)

J : 0 ~ 750 Celcius (32~1382 Fahrenheit)

N : -40 ~ 1200 Celcius (-40~2192 Fahrenheit)

E : -200 ~ 900 Celcius (-328~1652 Fahrenheit)

T : -250 ~ 350 Celcius (-418~662 Fahrenheit)

PT100 : -200 ~ 600 Celcius (-328~1112 Fahrenheit)

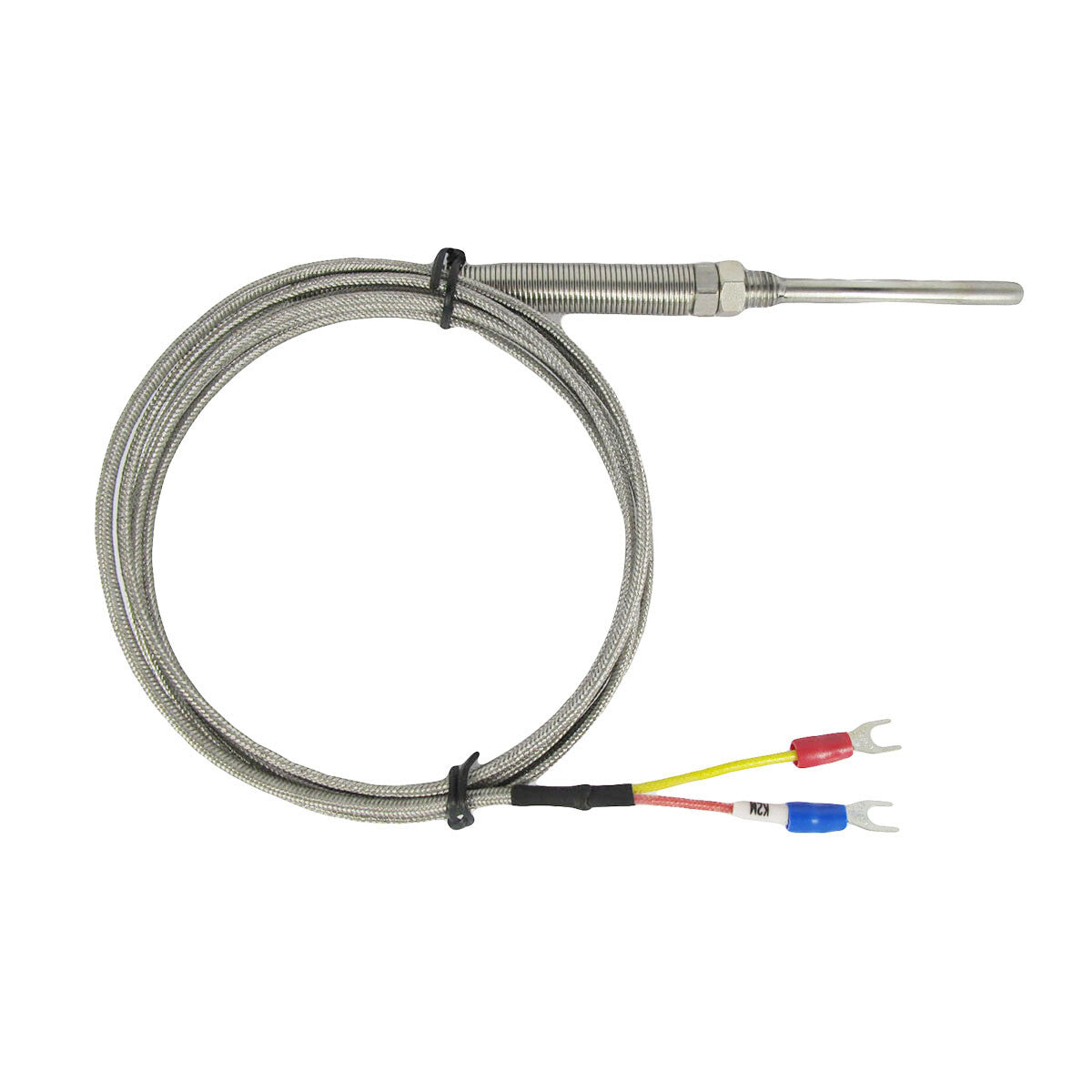

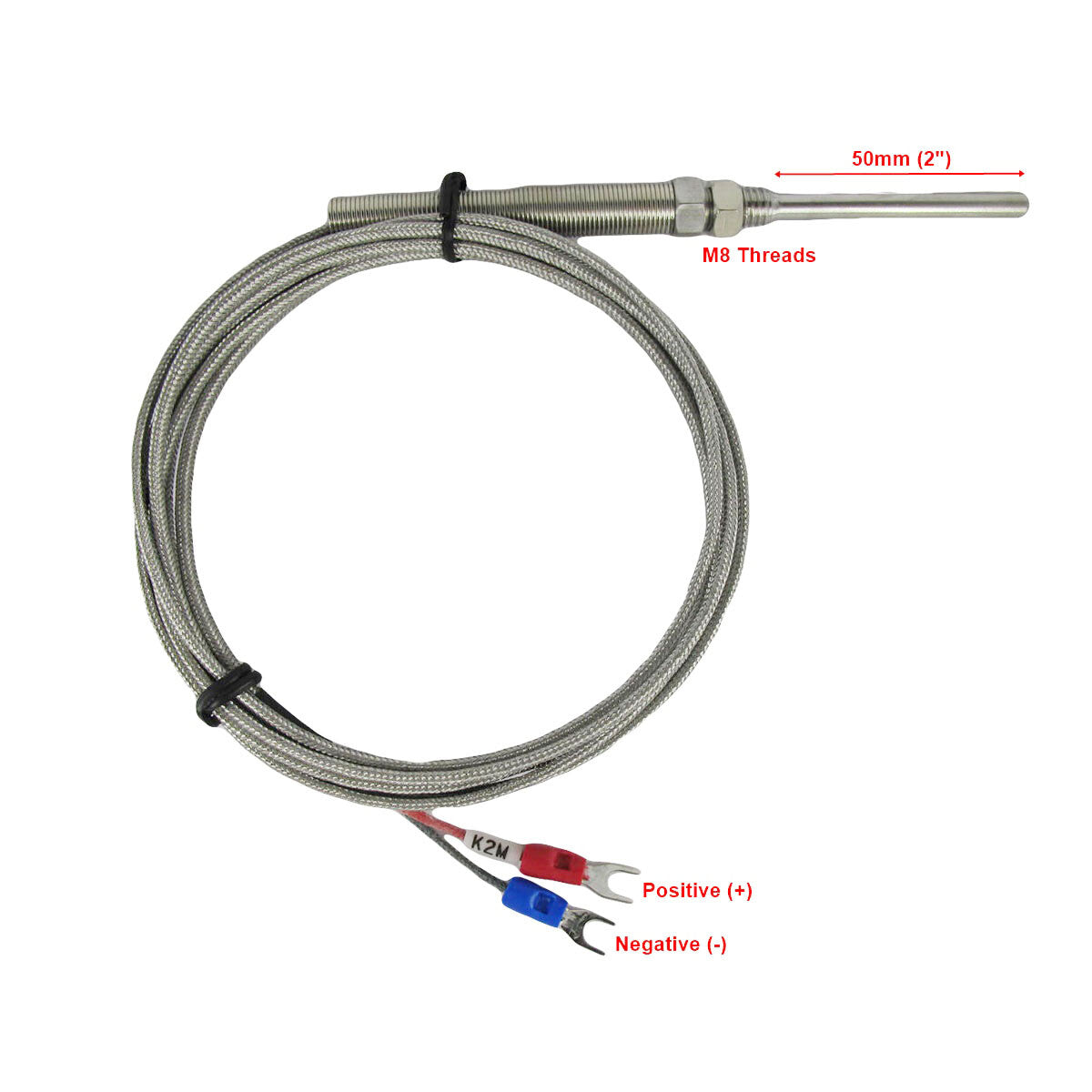

Temperature Sensor Description

Sensors Type : K Type Thermocouple

Measuring Temperature : -100 ~ 400 C ( -150 ~ 750F)

Probe Length : 50mm (2”)

Probe Diameter : 5mm (0.2”)

Threads Size : M8 threads with nut

Probe Material : Stainless Steel 304

Cable Length : 2m (6.6’)

Cable Shealth : Fiberglass overbraided with Stainless Steel

Connector : Spade Connectors

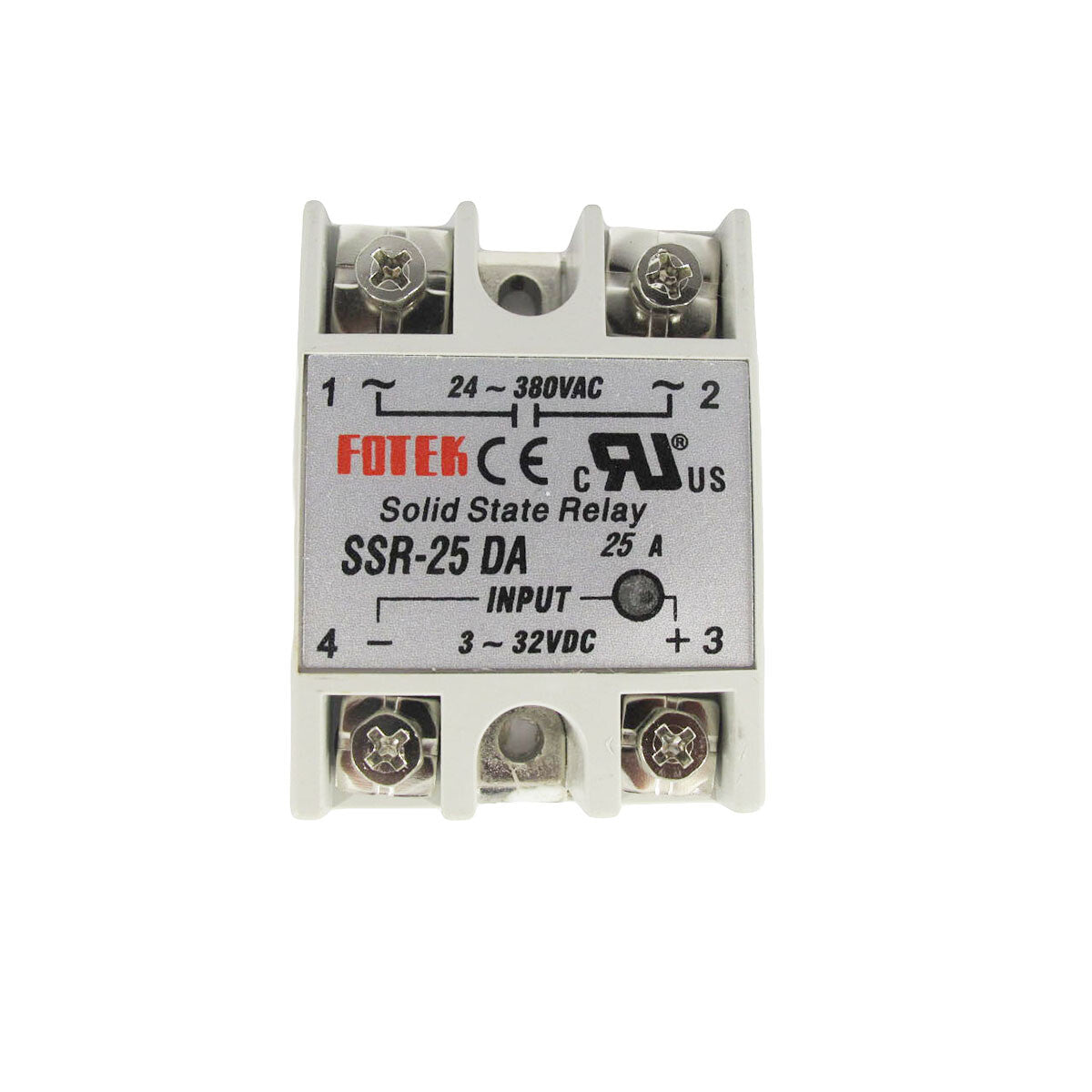

Solid State Relay (SSR) Specifications

Model : Fotek SSR-25DA

Input : 3~32 VDC

Output : 24~380 VAC

Current Ratings : 25A
