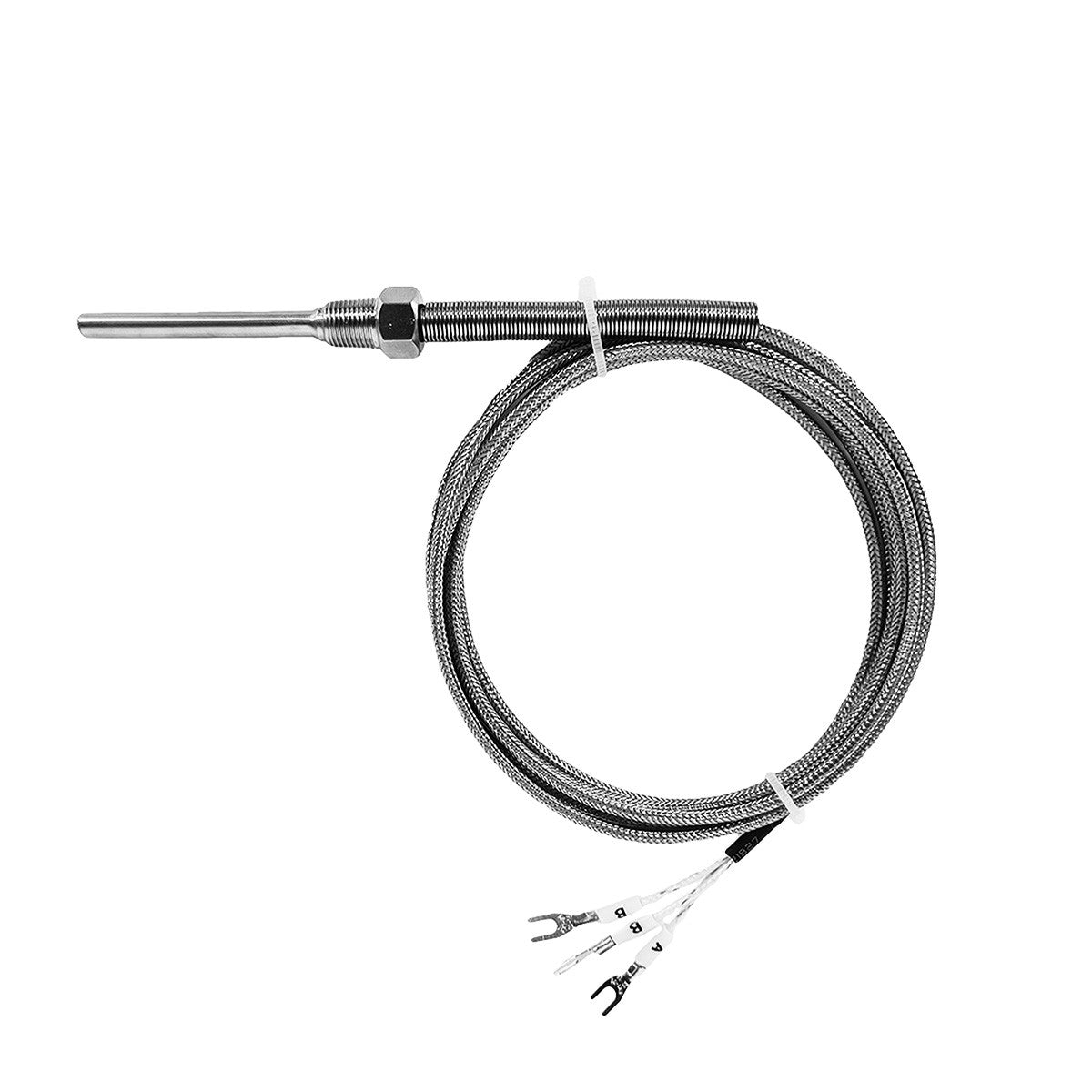

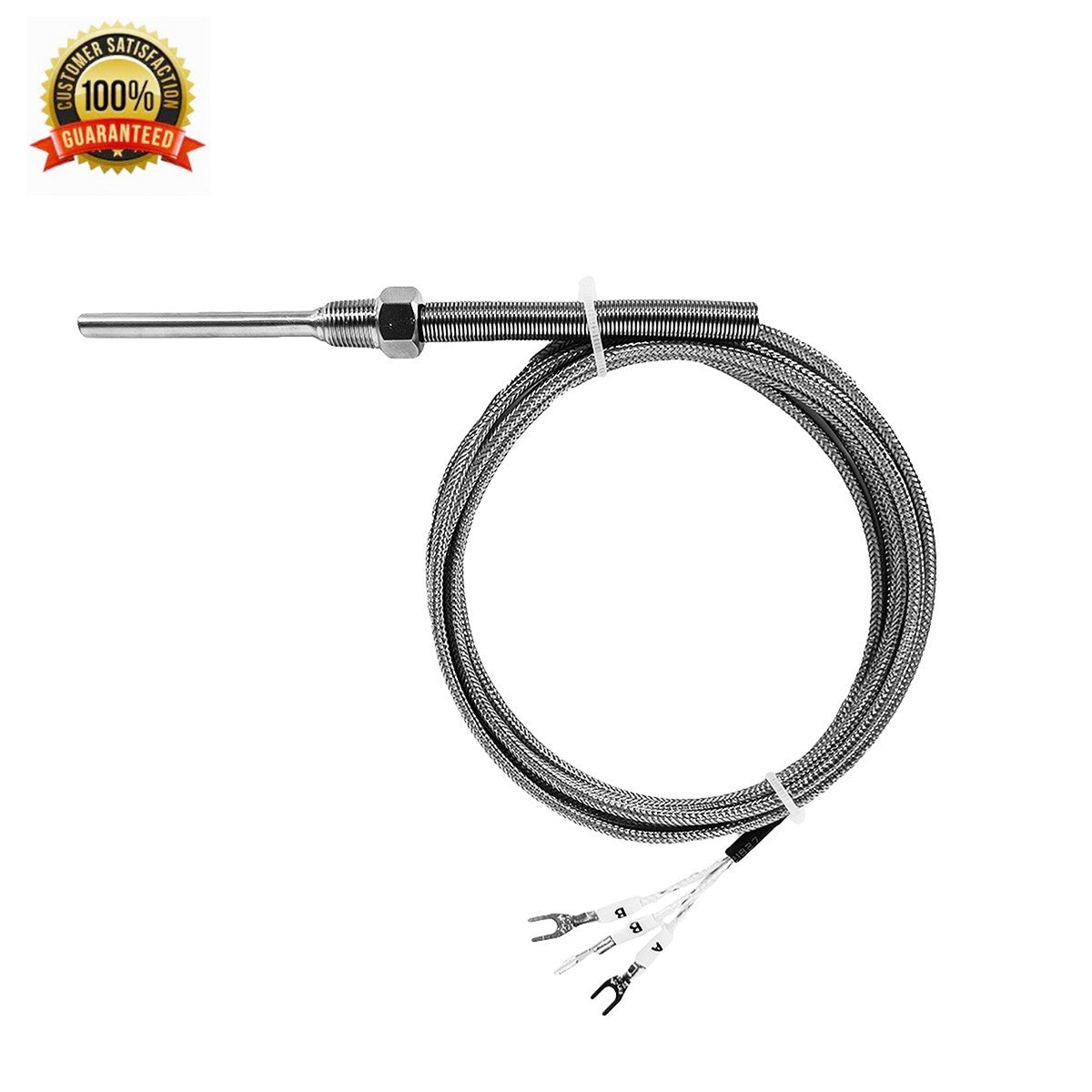

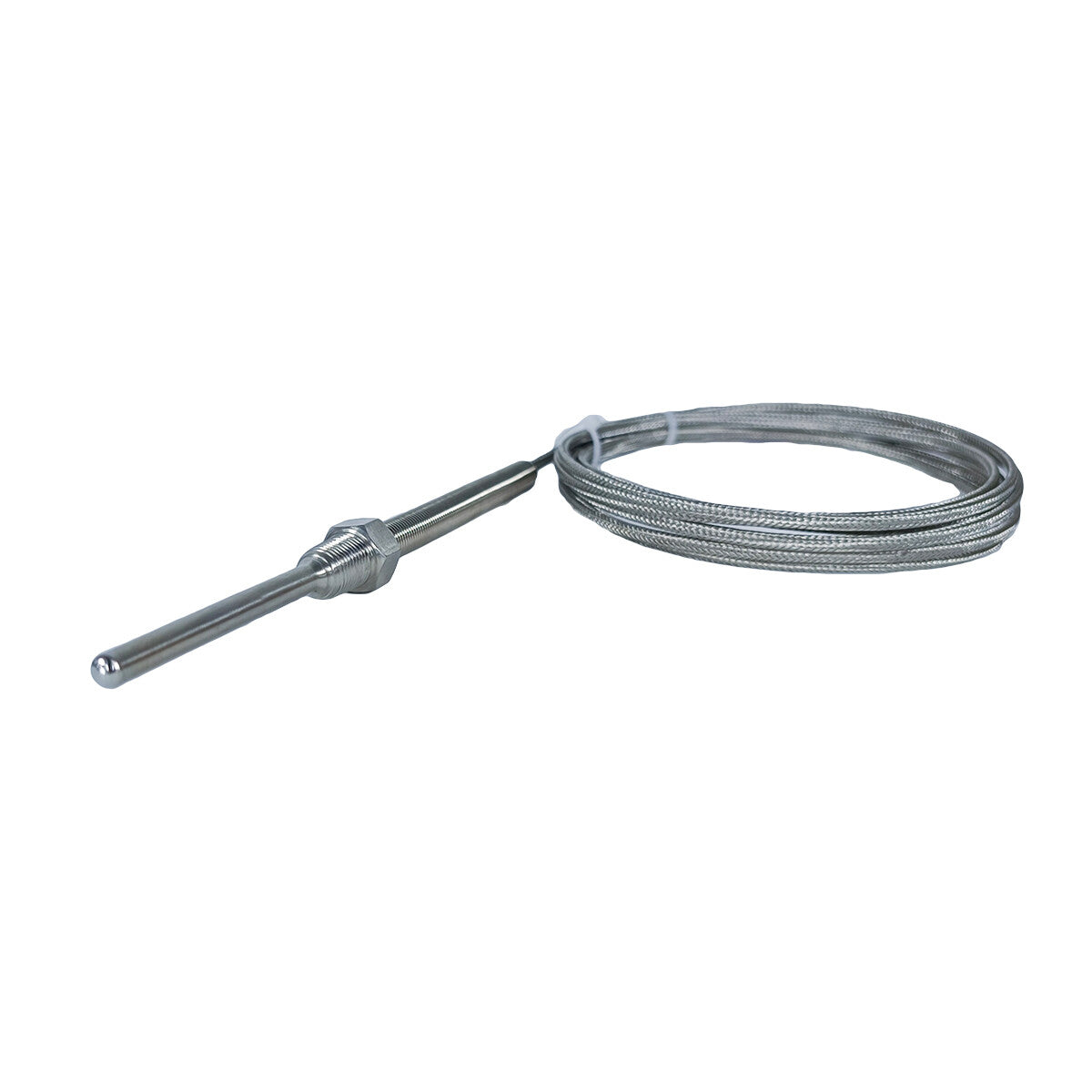

Waterproof Temperature Sensors RTD PT100 SS Probe with 1/8” NPT Threads

Features

100% Brand New Item

Compatible with all temperature meters, gauges or controllers with RTD PT100 input

Quotations of different lengths or diameter probe and lead wires are available upon request.

Item Description

Sensors Type :RTD PT100 (Thin Film Type)

Measuring Temperature : -50 ~ 400 ℃ ( -58 ~ 750℉)

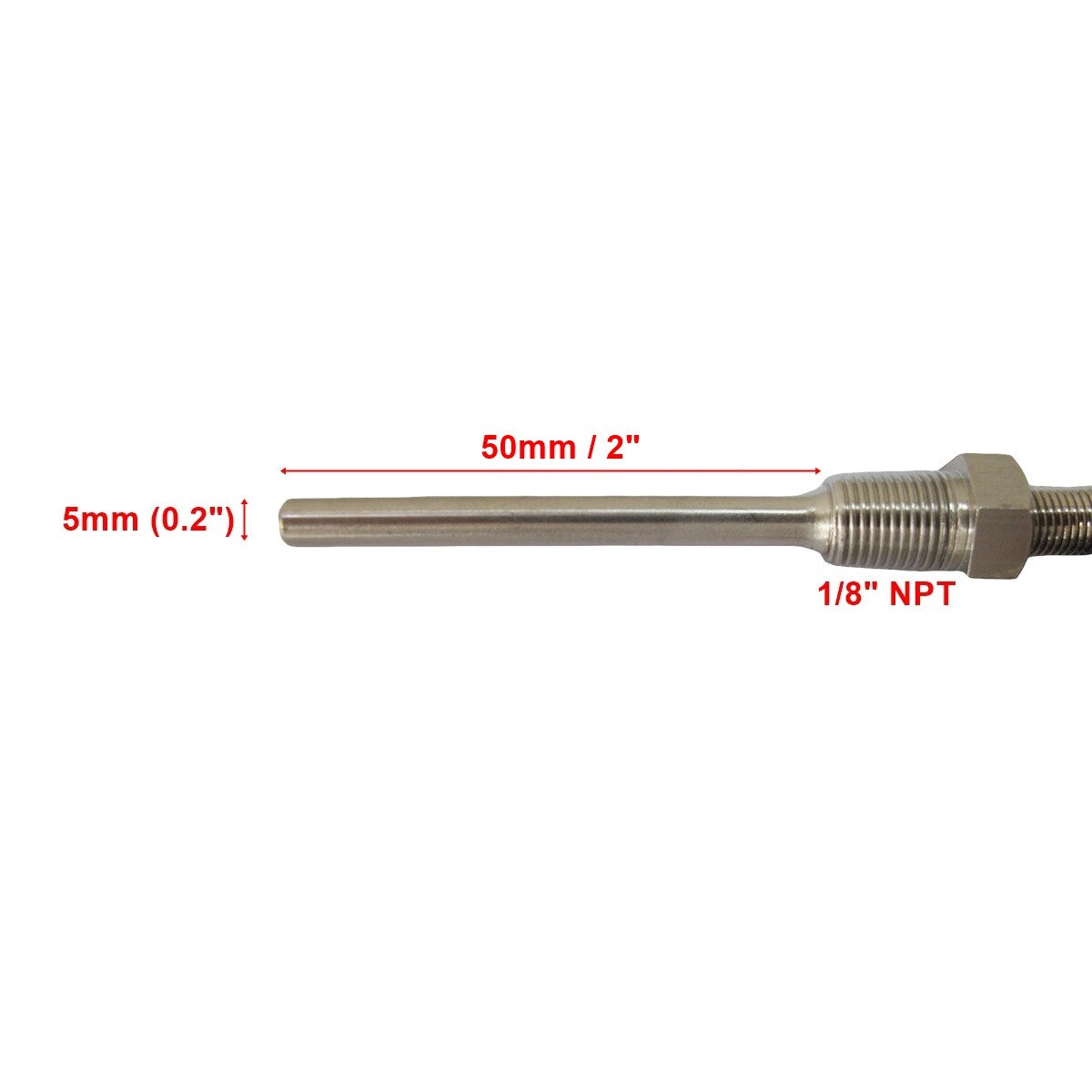

Probe Diameter 5mm (0.2”)

Probe Length 50mm (2”)

Thread Size  1/8” NPT

Probe Material Stainless Steel 304

Cable Length 1m (3.3 ft); 2m (6.6 ft); 3m (10 ft); 4m (13.2 ft); 5m (16.5 ft)

Cable Sheath Fiberglass overbraided with stainless steel

Configuration : 3-wire configuration

Connector Spade Connectors
