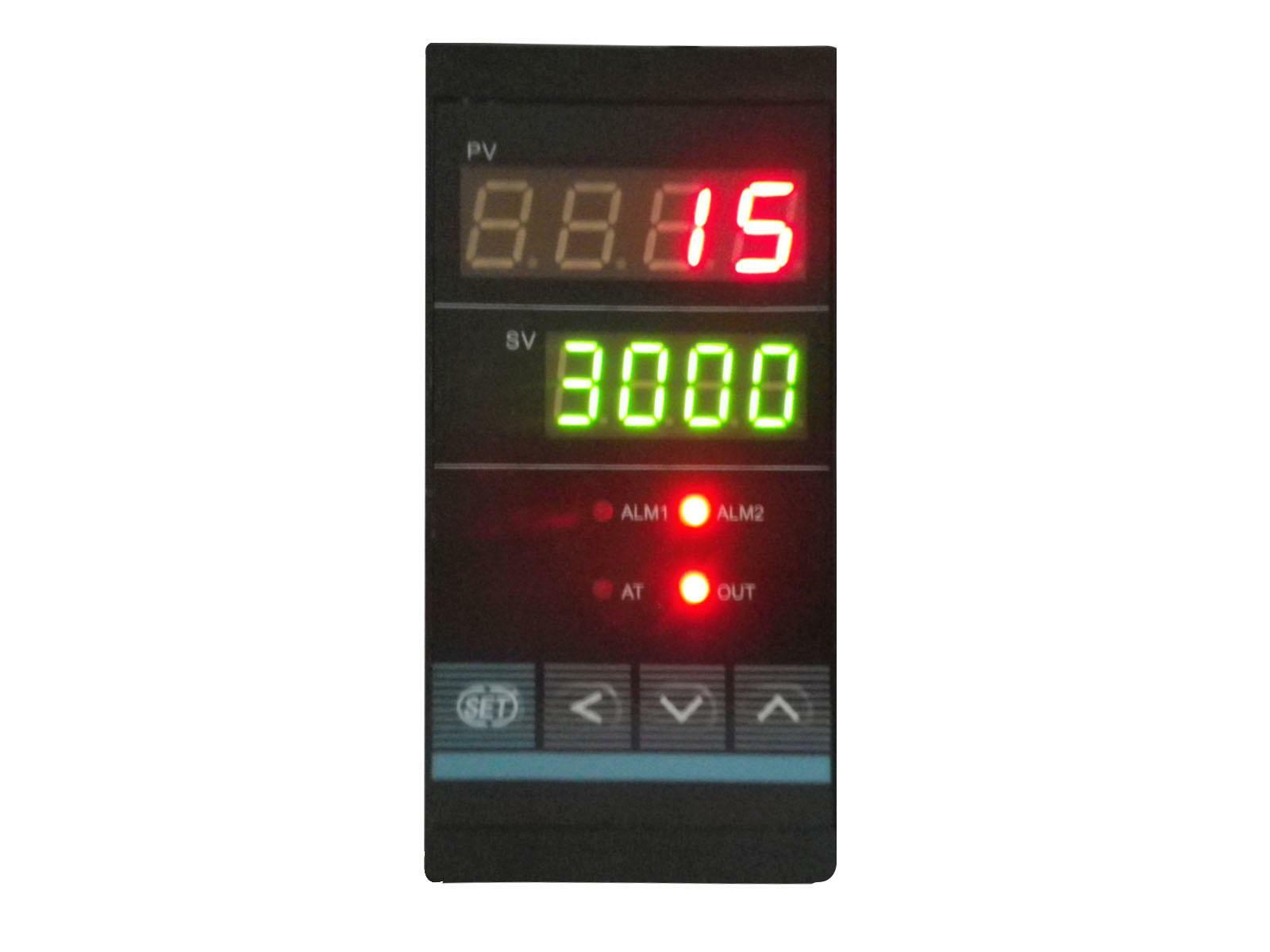

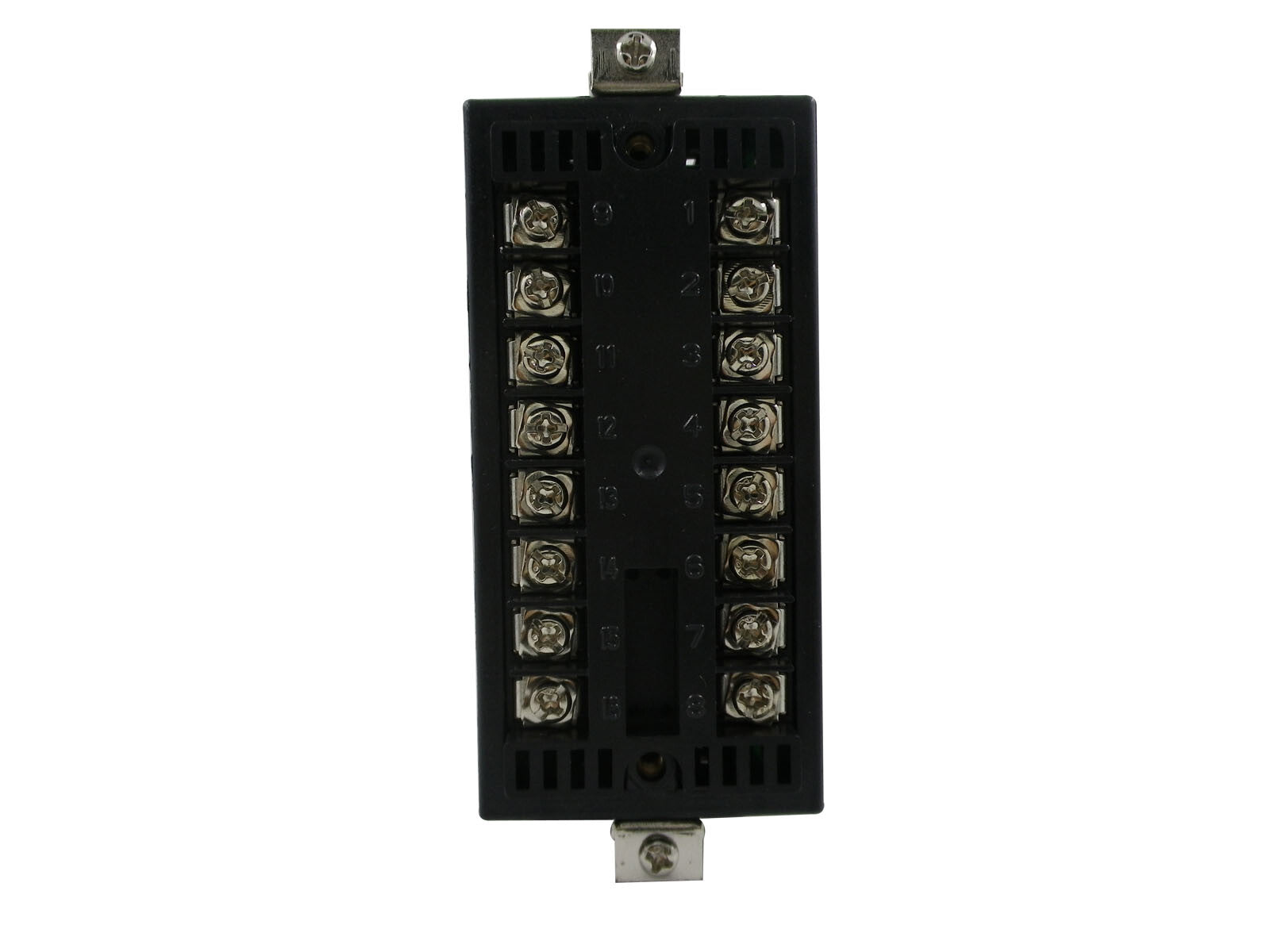

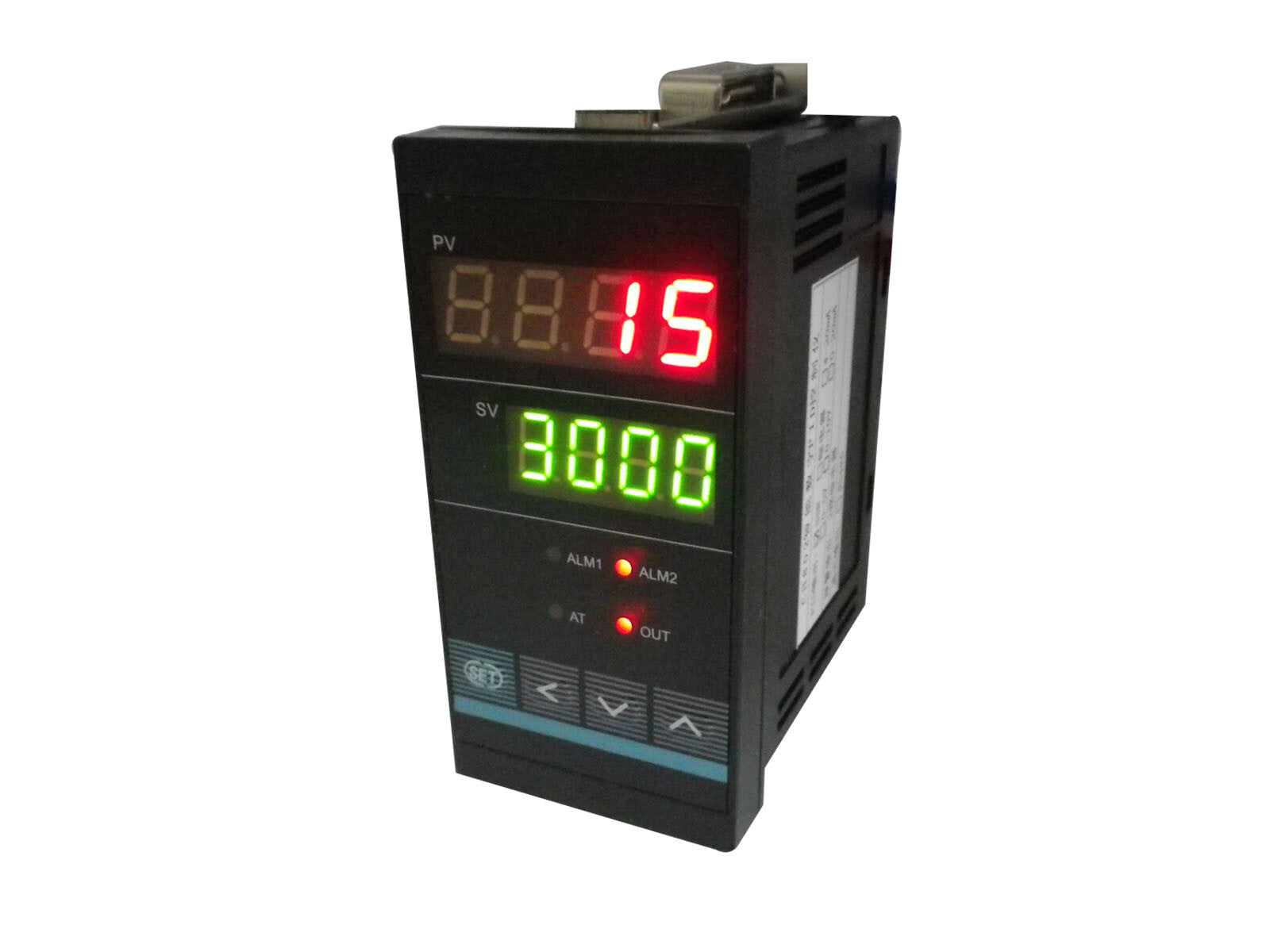

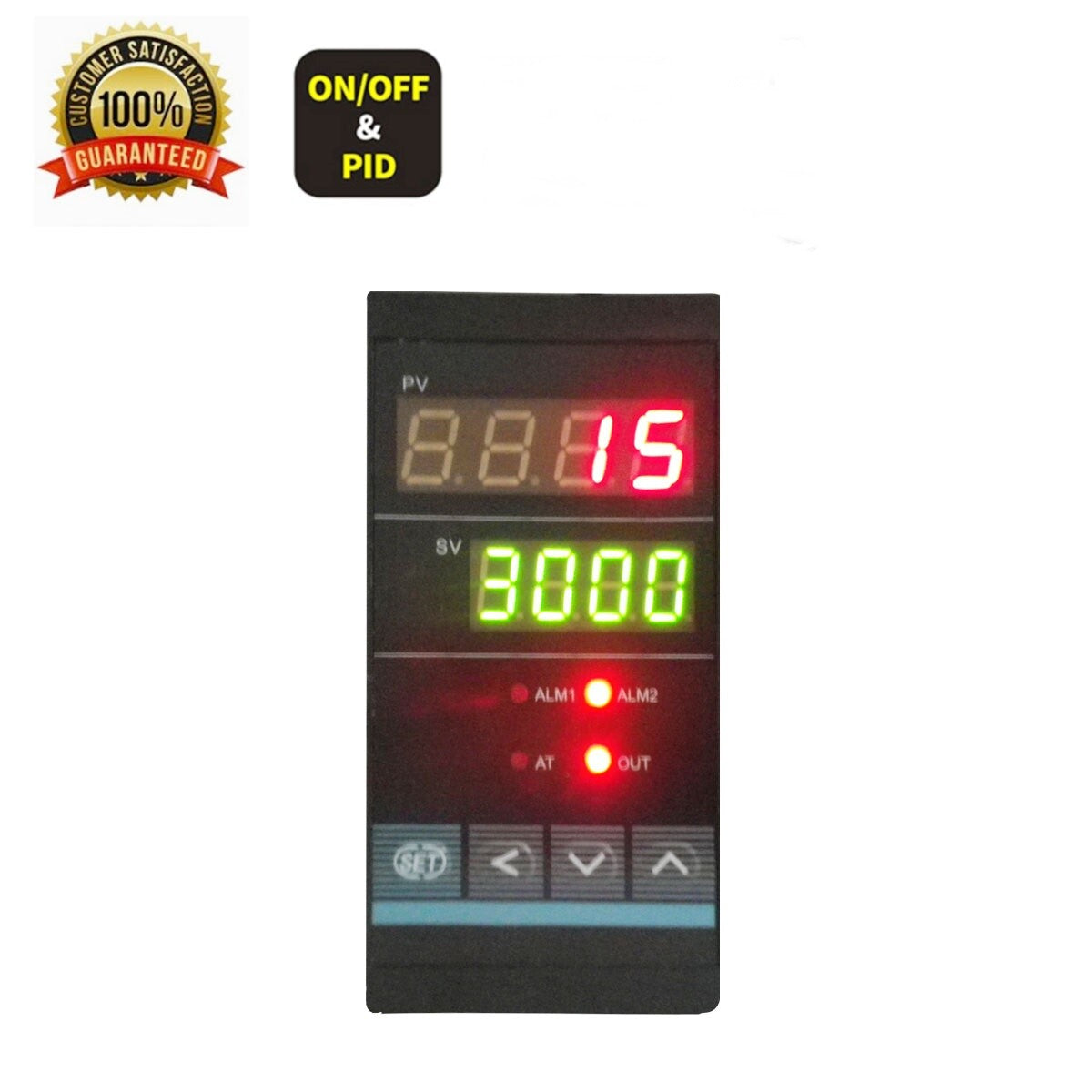

Universal Vertical Input Temperature PID Controller SSR Output & 2 Alarm (℃ /℉）

Input Sensors

K,J,R,S,B,E N,T,PT100,Cu50…

Display

Celcius / Fahrenheit (switchable)

Output  1

Analog output (0-10VDC)

Alarm Output  1

Relay 5A (250VAC)

Alarm Output  2

Relay 5A (250VAC)

Control Method

PID control

Sampling Time

0.5 second

Power Supply

90 ~ 260 VAC 50/60Hz

Power Consumption

4W

Ambient Temperature

-10 ~ 50 degree Celcius /14 ~ 122 degree Fahrenheit

Ambient Humidity

35 - 85 %

Dimensions

96(H) x 48(L) x 80(D)mm/3.78”(H) x 1.89”(L) x 3.15”(D)

Panel Cut

92 x 44 mm / 3.62” x 1.73”

Programmable Inputs (Display Range)

K

-200 ~ 1250 C

Wire 3/25

0 ~ 2300 C

E

-200 ~ 900 C

Wire 5/26

0 ~ 2300 C

S

0 ~ 1700 C

PT100

-200 ~ 600 C

B

-400~ 1800 C

Cu100

-50 ~ 150 C

J

0 ~ 750 C

Cu50

-50 ~ 150 C

T

-250 ~ 350 C

BA1

-200 ~ 650 C

R

0 ~ 1700 C

BA2

-200 ~ 500 C

N

-40 ~ 1200 C

G53

-50 ~ 150 C
